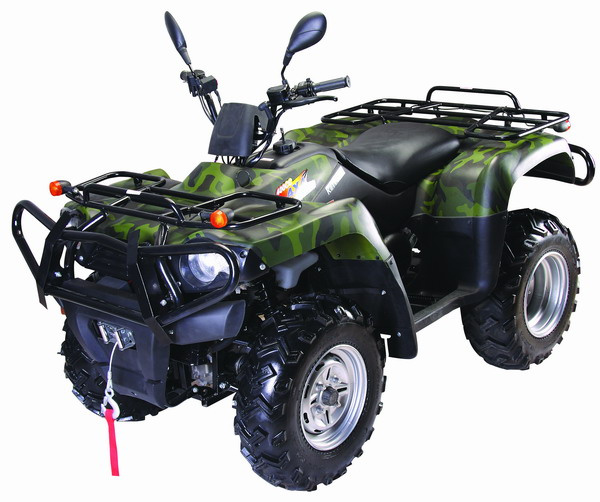

Home Kinroad Xintian Motorcycle Manufacture Co. ltd 400CC ATV with CVT Water Cooler Engine
Product Description
Overall Dimension L*W*H: 2070mm*1150mm*1175mmGround clearance: 200mm
Max Speed: ≥70km/h
Climbing Ability: ≥35degree
Specification of Front wheel: 25*8-12
Specification of Rear wheel: 25*10-12
Distance between front wheel: 860mm
Distance between rear wheel: 860mm
Distance between front and rear wheel: 600mm
Seat high: 900mm
Distance between front axle and rear axle: 1250mm
Gross weight: 350kg
Dry weight: 300kg
System front/rear Brake: Disk/Disk
Engine: One Cylinder/Four Stroke
Efficient Capacity: 384ml
Rated Power and Rotate Speed: 16.2KW/7600r/min
Max Torque and Rotate Speed: 28N. M/6000r/min
Compressing Ratio: 10.5: 1
Gearshift Mode: High speed / low speed /Reverse
Transmission: 4*4/ CVT /Shaft drive
Starting System: Electric
Cooling System: Water-Cooling
Fuel tank: 13L
Loading: 12PCS/20GP, 36PCS/40HQ
Packing measurement: 1950*1150*860mm
Kinroad Xintian Motorcycle Manufacture Co., Ltd is one of biggest motorcycle manufacturers in China with fifteen years experience. We have engine workshop, shock absorber workshop, frame workshop, muffler workshop, painting orkshop. and we do the final assembly We are the biggest go kart manufacture in the world., we can supply EEC approved Golf car, trailers, Go karts, EEC ATVs. EEC dirt bikes and EEC scooters, EEC motorcycles, EEC on road chooper, Our small displacement GO KART and ATV under the 110cc have the CE approves etc. we are ISO members, we will supply you competitive price with high quality products and professional after-sale service.
