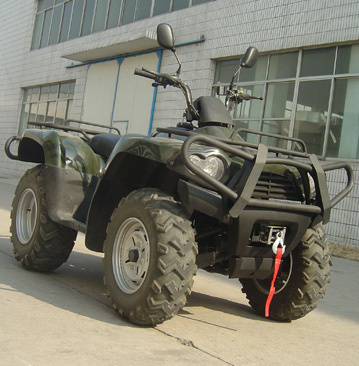

400CC ATV (HD-400A)

Specifications

Prod Model:	HD-400A

Product Description

1 Dimension (LxWxH) 2000x1150x1380mm
2 Wheelbase 1250mm
3 Distance Between Front Wheels 820mm
4 Distance Between Rear Wheels 830mm
5 Ground Clearance 200mm
6 Seat Height 830mm
7 Net Weight 260kgs
8 Gross Weight 306kgs
9 Fuel Tank 13L
10 Max Speed 80km/h
11 Brake System Front/Rear Disk/Disk
12 Gearshift Mode Automatic Clutch, Five Speeds, One Neutral With
Inside Reverse Gear
13 Transmission Mode Shaft
14 Drive System 4WD
15 Steering Angle 36° C
16 Tire Front 25x8-12
17 Tire Rear 25x10-12
Engine
1 Engine Model 179F
2 Efficient Capacity 359ml
3 Engine Type 4-Stroke, Single-Cylinder
4 Cooling System Air-Cooled + Oil-Cooled
5 Economical Oil Consumption (L/100km) <=7

Electrical
1 Battery 12V-14Ah
2 Starting System Electric/Hand-Pull
3 Ignition DCDI
