Specifications
Prod Model: |
GBT400ATV-4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
400ccatv (Gbt400ATV-4): |
387CC, Water Cooled, 4-Stroke, 1-Cylinder |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Transmission System: |
Shaft Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
50-75 km/h |
Certification: |
EEC |
Displacement: |
400CC |
Product Description

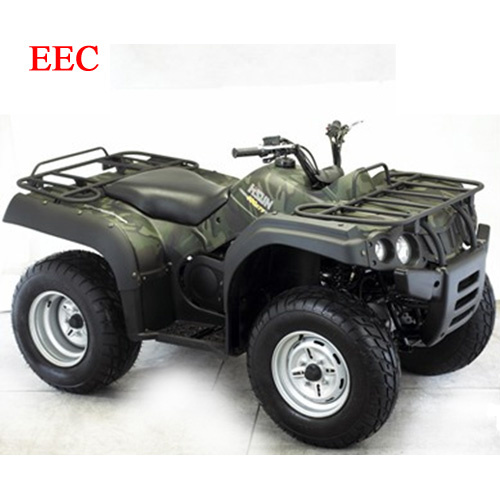

400ccATV (GBT400ATV-4)
Specifications
ENGINE
Type: 387CC, water cooled, 4-stroke, 1-cylinder
Bore x Stroke: 83mm x 71.6mm
Compression Ratio: 9.5: 1
Max. Power: 20kw(26.8HP)/7000-7500rpm
Max. Torque: 30N. M/6000-6500rpm
Carburetion: PD33J
Ignition: CDI
Starting: Electric/pull start
Transmission: F-N-R
Drive Train: Axle
CHASSIS
Suspension: Independent double swing arm
Suspension/Rear: Single swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated Hydraulic disc
Tyres/Front: AT25 x 8-12 radial
Tyres/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 1930mm x 1045mm x 1130mm
Seat Height: 830mm
Wheelbase: 1260mm
Ground Clearance: 245mm
Fuel Capacity: 15L
Dry Weight: 262kg
OTHER
Warranty: 12 months limited factory warranty
Loading Quantity: 10PCS/20'GP; 24PCS/40'GP; 36PCS/40HQ
