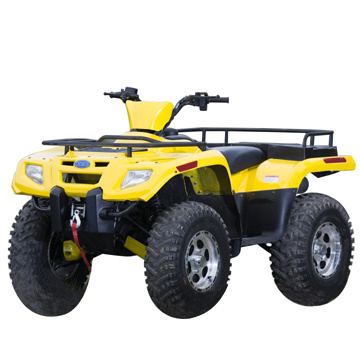

400cc 4x4 EEC ATV(FA400E-C)

Specifications

Prod Model:	FA400E-C

Product Description

Dimension (LxWxH): 1970x1140x1190mm
Wheelbase: 1250mm
Distance between front wheels: 835mm
Distance between rear wheels: 870mm
Ground clearance: 210mm
Seat height: 830mm
Dry weight : 230kgs
Gross Weight: 245kgs
Fuel tank: 13L
Max speed: 95km/h
Brake system front/rear: Disk/Disk
Gearshift mode: Automatic clutch, five speed, one neutral with inside reverse gear
Transmission mode: Shaft
Drive system: 4WD
Steering angle: 35
Tire front: AT25x8-12
Tire rear: AT25x8-11
Engine
Efficient Capacity: 359ml
Engine type: 4-stroke, Single-Cylinder
Cooling system: Air-cooled + Oil-cooled
Rated power and rotate speed: 15kw/5200rpm
Max torque and rotate speed: 23N. M/4000rpm
Economical oil consumption (L/100km): 5
Battery: 12V-14Ah
Starting system: Electric/Hand-pull
