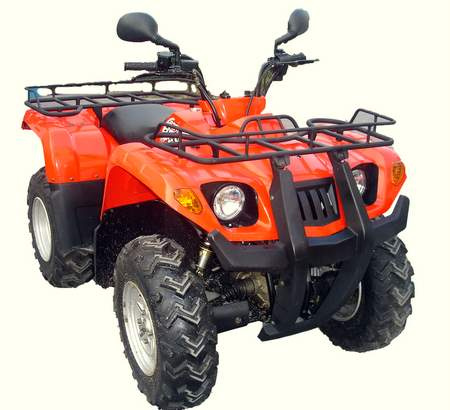

400cc 4 x 4WD Yamaha JV Engine ATV with EPA / DOT

Specifications

Prod Model:	SL400ATV-3

Product Description

Specifications:
Engine type: Single cylinder, air-cooled, 4-stroke
Power: 16kW/6, 500rpm
Max. Torque: 26N. M/5, 000rpm
Min. Ground clearance: 100mm
Wheel base: 1, 240mm
Fuel tank capacity: 6. 6L
Transmission mode: Axle
Start mode: Electric/manual
Tires: A) Front wheels: 25 x 8-12
B) Rear wheels: 25 x 10-12
Max. Speed: 75km/h
Break type (F / R): Disc / drum
Power source: 12V, 20Ah
Height of seats: 860mm
Dry weight: 135kg
Load capacity: 220kg
Climbing degree: 22
Front hanging: Double arm-swing
Rear hanging: Integral
Cylinder size: 83 x 71. 6mm
Displacement: 387. 4ml
Transmission: 5 gears with one reverse gear, one neutral-gear, automatic clutch
Min. Turning radius: 2, 900mm
Parking trig: Mechanical lock
Ignition mode: CDI
Engine oil: 2. 9L
Gear oil: A) Front tank: 0. 4L
B) Rear tank: 0. 25L
Max. Number of riders: 2
Lubrication: Press splash
Compression proportion: 8. 7: 1
Gas cylinder number: 1
Product dimensions (L x W x H): 2, 100 x 1, 125 x 1, 175mm

Outer packing:
Carton dimensions: 2, 150 x 1, 160 x 880mm

Conveyance:
Qty/20' GP: 10 units
Qty/40' GP: 22 units
Qty/40' HQ: 33 units
