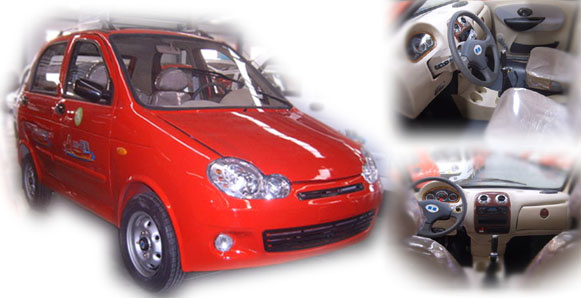

Home Shandong Jindalu Vehicle Co., Ltd. 4-Wheels Motorcycle for Disable Person (FL250ZK-F2)
Specifications
| Prod Model: | FL250ZK-F2 |
|---|
Product Description
1. Efficient ball and cage transmission system makes noise decreasing 25% lower.2. Car configuration, a saloon car enjoyment Genuine SUZUKI efficient shock absorber guarantee 80, 000 km. Driving period Without trouble.
Genuine SUZUKI brake system makes driving safely and life-span 5-10 times longer.
SUZUKI tire, wheel rim, guarantee 80, 000 km driving without replacement.
Mini computerized car meter is elegant, and wearing period is 5 times longer.
Car-used seat is more comfortable.
3. Six Patents, advanced technic, leading ahead in the field
Car outline, independent Front and Rear suspensions, equalizer parking brake, Three-in-one transmission, automatically overload alarm. Among them, three-in-one transmission patent is honored gold-award in China.
4. Perfect service, enlarge the noble status.
Perfect, professional and in-time services are always in your side.
| Maximum speed: ≤ 70Km/h |
| Economic speed: 45Km/h |
| Fuel consumption :≤3.5 L/100km |
| Climbing ability : ≤ 20(º |
| Turning circle diameter min: ≤ 6m |
| Brake distance (30km/h): ≤ 7.5m |
| Wheel Track:1105mm |
| Wheelbase:1855mm |
| Ground clearance Min.: 160mm |
| Net weight: 580kg |
| passenger number :4persons (including driver) /300KGS |
| Front wheel specification/ tire pressure : 145/70R12/250kpa |
| Rear wheel specification/ tire pressure: 145/70R12/250kpa |
| Front wheel turning angle (L/R) Max.: 32º/32º |
| Dimensions: (LxWxH) (mm) : 3330X1680×1560 |
| Engine |
| Engine type :Single cylinder, 4-stroke, water forced cooling, |
| Bore x stroke:67X65mm |
| Exhaust Vol: 229.2ml |
| Max. power:12 KW /6500 r/min. |
| Rated power:11.5 KW /6500 r/min. |
| Max. torque :17.5 N.m/5500r/min |
| Min. stable speed without load :1500r/min |
| Compression ratio:10:1 |
| Fuel brand: ≥ RQ-90 |
| Starter mode :Electric start |
| Lubrication:Forced Splash lubricating |
| Ignition :CDI |
| Spark plug:D8TC |
| Carburetor:PZ30 |
| Steering: Left position/ rack and pinion |
| Clutch:Wet, multiple plate |
| Transmission:5 gear, constant mesh gear |
| Fuel tank volume:10L |
| Oil tank volume/No.:1.1L 15W/40-SE |
| Battery volume:Free maintenance 30Ah |
| 6pcs/40HQ By whole car |
