Price: | US $ 1075/Piece |
---|---|
Trade Terms: | FOB,CIF,others |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T |
Specifications
Prod Model: | D414L |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Climbing Capacity: | 12degrees |
Motor: | Brush |
Max Speed: | <20km/h |
Battery Type: | Lead-acid Battery |
Frame Material: | Steel |
Voltage Of Battery: | 24V |
Certification: | CE |
Maximum Loading Capacity: | ≥120kg |
Wheel Hub: | Alloy Hubs |
Folded: | Unfolded |
Charging Time: | >10h |
Part: | Motor |
Running Distance: | 40km |
Brake: | Drum |
Power: | 450W |
Wheel Size: | 10" |

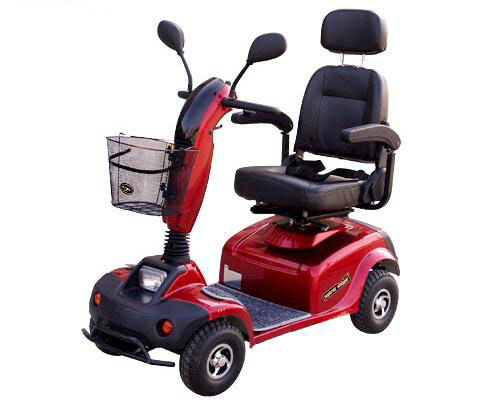

Product Description
Product Description
Overall Dimentions (LXWXH) | 1300 x620 x 980mm |
Max Forward Speed | 12km/h |
Max Backward Speed | 6km/h |
Braking Distance(≤) | 2.4m |
Max Climbing slope | 12degrees |
Ground Clearance | 90mm |
Loading Capacity | 140kg |
turning radius | 1.8m |
Range per Change | 40km |
Front Tire | 10" |
Rear Tire | 14" |
Motor Rated Power | 24V 450W |
Controller | PG S-Drive 120A |
Charger | 24V 5A |
Battery | 12V/45AHX2 (Taiwan Long battery ) |
Braking System | Electric Regenerative Braking & Hand brake |
N.w. | 100kg |
G.w. | 114kg |
Battery Weight(2pcs) | 29.7kg |
Packing Size: | 1470x740x1040mm |
Container packing | 20GP : 24units 40GP :48units 40HQ : 48units |

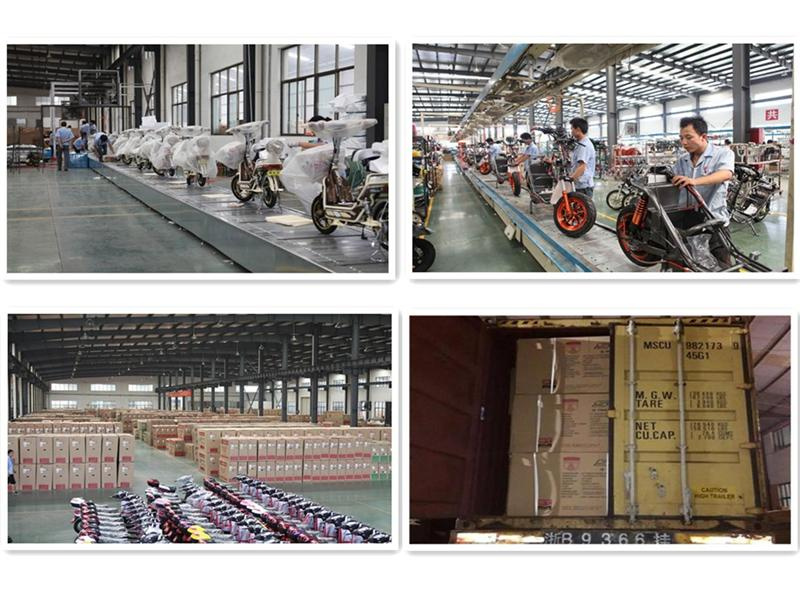

Packing and Shiping
Our services
Perfect craft
Superb quality
Our company is the professional manufacturer of electric scooters for about 15 years. And we are the first and the unique listed company in e-bike line. we would like to offer you the best product at a very nice price.

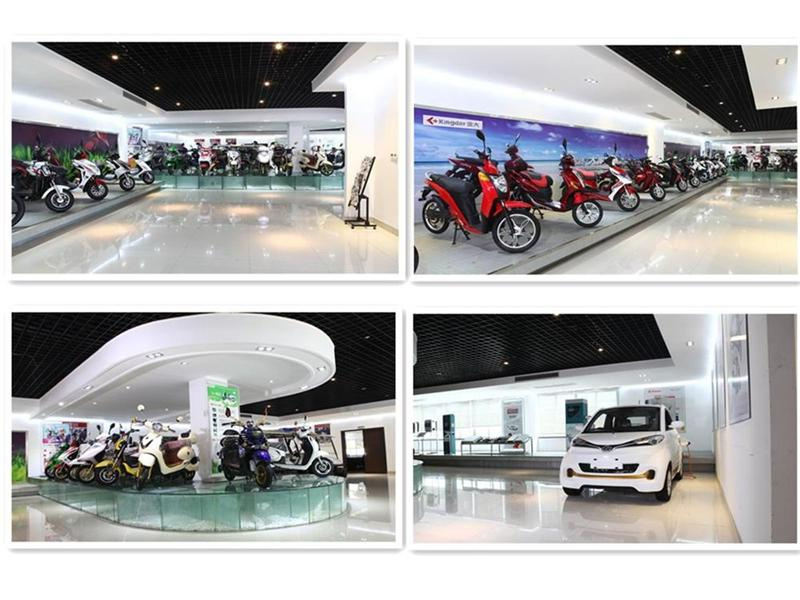

Compang Information
