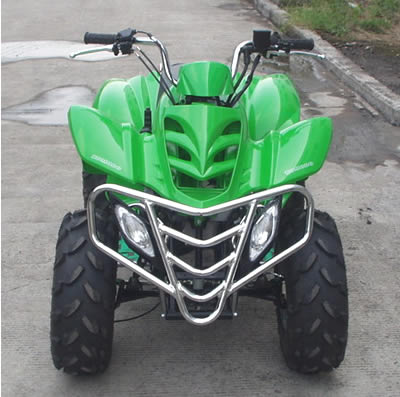

Home Wuyi Jiuzhou Tools Co., Ltd. 4-Strokes, Air Cooled, Single Cylinder ATV (110)
| Prod Model: | ATV110 |
|---|
Product Description
1) Engine: 4-strokes, air cooled, single cylinder2) Transmission system: Shaft drive
3) Bore x stroke (mm): 52. 4 x 49. 5
4) Piston displacement: 107
5) Maximum Power(kw/r/min): 5. 5/8000
6) Maximum Torque(N. M. /r/min): 6. 5/5750
7) Starting system: Electric starter
8) Transmission: 4-speed, semi automatic
9) Seat Height(mm): 670
10) Min turning radius(mm): 2400
11) Ground Clearance: 100
12) Brake(Front/Rear): Drum/Drum
13) Tyre, Front: 19 x 7-8/2. 9Psi
14) Tyre, Rear: 18 x 9. 5-8/2. 9Psi
15) Ignition Type: C. D. I
16) Fuel Tank Capacity(L): 7. 8
17) Front Suspension: Leading Arm
18) Rear Suspension: Monoshock Swing Arm
19) Parking Brake: Mechanical Lock
20) Battery: 12V-9Ah
21) Max Load Capacity(kg): 95
22) Engine Oil Capacity(L): 0. 95
23) Gear Oil Capacity(L): 0. 12
24) Dry Weight(kg): 130
25) Rider Capacity: 1 Person
26) Wheel Base: 1040
27) Overall Height (mm): 950
28) Lubrication: AUTO
29) Overall Length(mm): 1540
30) Overall Width(mm): 860
31) Compression Ration: 9. 1: 1
Conveyance
Qty/20'FCL: 20pcs
Qty/40'FCL: 44pcs
Qty/40'HQ: 66pcs
