Specifications
Prod Model: |
ES3506 |
Product Size: |
1300X510X1080mm |
Motor: |
36V 350W Hub Brushless Motor |
Battery: |
36V 12ah |
Controller: |
36V/350W |
Charge Requirement: |
AC80-240V 50-60Hz 36V/Max1.6A |
Front/Rear Tires: |
12½X3.0 |
Break Style: |
F/R Single Mechanical Disc/φ140 |
Max Speed: |
18-23km/H |
Distance Per Charge: |
25-30km |
Climbing Capability: |
15?? |
Load Capacity: |
100-200kg |
Accessories: |
Basket |
Certification: |
CE |
Folded: |
Folded |
Voltage: |
36V |
Charging Time: |
8-9hours |
Product Description

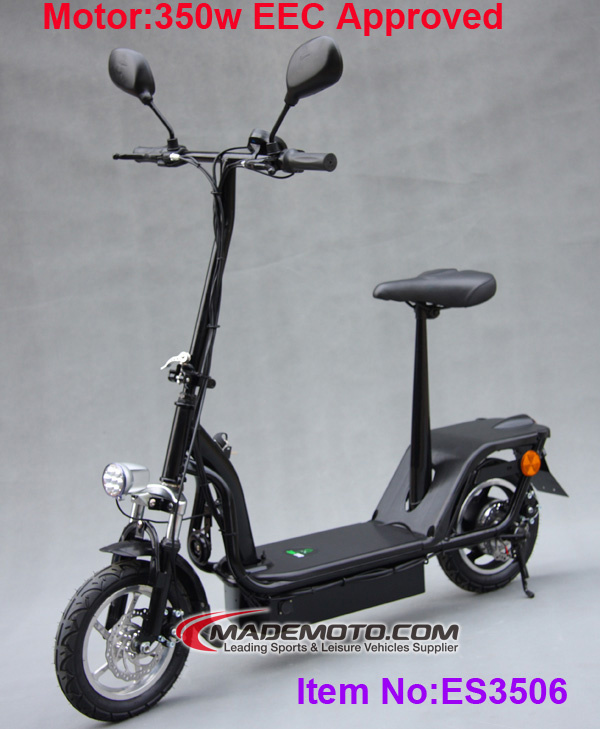

Electric Scooter
Best Selling EEC Type New Foldable 350W Electric Scooter with over-load protection
ES3506-A
Key Specifications
1. Product size: 1300x510x1080mm
2. Motor: 36V 350W hub brushless motor
3. Battery: 36V 12AH
4. Rate power: 350W± 10%
5. Controller: 36V/350W
6. Charge Requirement: AC80-240V 50-60Hz 36V/MAX1.6A
7. Front/Rear tires: 12½ X3.0
8. Break style: F/R single mechanical disc/φ 140
9. Max speed: 18-23km/h
10. Distance per charge: 25-30km
11. Charging time: 8-9hours
12. Width of handle bar: 60cm
13. Handle bar ground clearance: 108cm
14. Footboard ground clearance: 20cm
15. Cushion ground clearance: 78cm
16. Available colors: Black, blue, silver, red, yellow, orange, optional
Package: Carton Packing
17. Net weight: 36.5kgs/80.5lbs
18. Gross weight: 42.0kgs/92.6lbs
19. Carton size: 114x34x53cm/1pc
20. Container: 136pcs/20', 282pcs/40', 331pcs/40'HQ
Special Features:
EEC type
Over-load protection
Dual max speed preset
Digital speed indication
Long cruising duration
3.0-12 aluminum rims
36V 350W hub brushless motor
Electric Scooter
Best Selling EEC Type New Foldable 500W Electric Scooter with over-load protection
ES3506-B
Key Specifications
1. Product size: 1300x510x1080mm
2. Motor: 48V 500W hub brushless motor
3. Battery: 48V 12AH
4. Rate power: 500W± 10%
5. Controller: 48V/500W
6. Charge Requirement: AC80-240V 50-60Hz 48V/MAX1.8A
7. Front/Rear tires: 12½ X3.0
8. Break style: F/R single mechanical disc/φ 140
9. Max speed: 18-23km/h
10. Distance per charge: 25-30km
11. Charging time: 6-8hours
12. Transmission: Shaft drive transmission
13. Width of handle bar: 60cm
14. Handle bar ground clearance: 108cm
15. Footboard ground clearance: 20cm
16. Cushion ground clearance: 78cm
17. Available colors: Black, blue, silver, red, yellow, orange, optional
Package: Carton Packing
18. Net weight: 36.5kgs/80.5lbs
19. Gross weight: 42.0kgs/92.6lbs
20. Carton size: 114x34x53cm/1pc
21. Container: 136pcs/20', 282pcs/40', 331pcs/40'HQ
Special Features:
EEC type
Over-load protection
Dual max speed preset
Digital speed indication
Long cruising duration
3.0-12 aluminum rims
48V 500W hub brushless motor
