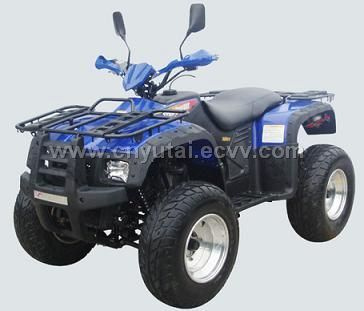

300CC Water Cool EEC EPA Shaft Drive ATV (YTATV300ST-1)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | YTATV300ST-1 |
|---|
Product Description
Specifications:1) Dimensions (L x W x H): 2,100 x 1,150 x 1,125mm
2) Wheelbase: 1,290mm
3) Distance of wheel: 900mm
4) Net weight: 265kg
5) Max. speed: 70km/h
7) Fuel consumption: 5L/100km
7) Brake system (front / rear): disc / disc
8) Tire (front / rear): 24 x 8-12 / 24 x 11-10
9) Fuel tank: 13.4
10) Front / rear suspension: spring shock absorber
11) Engine type: 173MN
12) Displacement: 278ml
13) Bore x stroke: 72.8 x 66.8
14) Engine: single-cylinder, four-stoke, liquid-cooled
15) Transmission: CVT system
16) Drive mode: shaft drive
17) Starting system: electric
18) Rated power: 14kW/6,500rpm
19) Max. power: 15kW/6,500 - 7,000rpm
20) Max. torque: 23N.m/5,500rpm
21) Ignition: TCI
22) Optional color: red, yellow, blue, green
Outer packing:
Carton dimensions (L x W x H): 1,980 x 1,100 x 870mm
Conveyance:
Qty/20' FCL: 10pcs
Qty/40' FCL: 22pcs
Qty/40' HQ: 33pcs
