Home Farspeed Industry Group Company Ltd 300CC Go Kart/Dune Buggy (FPG300E)
| Prod Model: | FPG300E |
|---|---|
| Certification: | EEC |
| Displacement: | 250CC |
Product Description

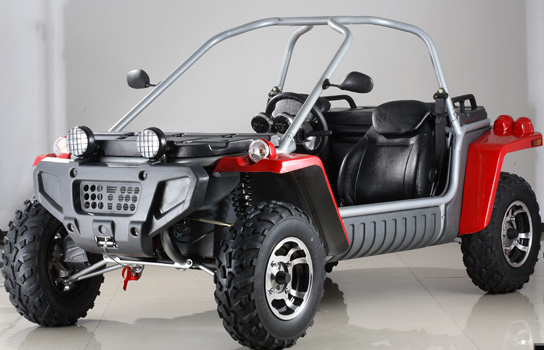

300CC EEC GO KART BUGGYModel No FPG300E
| ENGINE TYPE | Single cylinder,4 Stroke, Water Cooled |
| MAX.POWER(KW/rpm) | 14KW/7000rpm |
| MAX.TORQUE(NM/rpm) | 20N.M/5500rpm |
| MAX.SPEED | 60KM/h |
| BORE STROKE | 72.5mm × 66.8mm |
| DISPLACEMENT | 276cm |
| COMPRESSION RATIO | 10.3:1 |
| CARBURETOR | CVK052 |
| LUBRICATE | Combined force-feed and splash lubrication |
| AIR FILTER TYPE | Dry Air Filter Net |
| SPARK PLUG | DR8EA |
| IGNITIOIN | C.D.I |
| STARTING | Electric Start |
| STARTING PROCEDURE | Turn Electric Lock |
| GEARSHIFT | Manual |
| TRANSMISSION | Automatic CVT |
| FINAL DRIVE SYSTEM | 2W/Shaft |
| BRAKE FRONT | Hydraulic disc brake |
| BRAKE REAR | Hydraulic disc brake |
| BRAKE DISTANCE | 7m/30km/h |
| FRONT SUSPENSION | Double Swing Arm (Mcpherson front suspension) |
| REAR SUSPENSION | Indepentent rear suspension with double swing arm |
| SHOCK ABSORBER(F) | Double |
| SHOCK ABSORBER(R) | Double |
| BATTERY | 12V/20A |
| ENGINE OIL | 1.5L |
| TRANSMISSION OIL | 0.65L |
| REAR OIL | __ |
| FUEL | 90# unleaded gasoline |
| FUEL CAPACITY | 20L |
| TURNING RADIUS | 3800mm |
| MAX.LOAD(kgs/lbs) | 156kg |
| FRONT TIRE | 25×8-12 |
| REAR TIRE | 25×8-12 |
| WHEEL MATERIAL | Aluminium alloy |
| OVERALL | 2700×1470×1440mm |
| CARTONE SIZE (L/M/H) | 2520×1500×710mm |
| PACKAGE40HQ`(SET) | 23pcs |
| WHEELBASE(mm) | 2005mm |
| SEAT HEIGHT(mm) | 500mm |
| GROUND CLEARANCE | 250mm |
| NET WEIGHT(kgs/lbs) | 370kgs |
| COLOR CODE | Red, Black, Orange, Blue |
Farspeed Industry Group Company Ltd. is a professional manufacture of ATVs, dirt bikes, scooters and pocket bikes. We have specialized in the research and development of sports vehicle about 6 years. Our main market include the UK, France, Germany, Finland, Sweden and Australia.
Base on the good quality products and outstanding service, our customers have performed very competitive in their market. In order to satisfy the demand of customers farther more, we have built a reliable and long term relation with China vehicles supplier. So we become more competitive in cost control, parts supply, and product variety.
We not only have special engineers to offer reliable warranty and good after-sales services to customers but also follow the situation of marketing of our customers, provide the the latest products information that we master in many years experience at this industry. The aim of us is just like the name of our company, we can run a more Far way at a more fast Speed together with you hand in hand.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits.
Base on the good quality products and outstanding service, our customers have performed very competitive in their market. In order to satisfy the demand of customers farther more, we have built a reliable and long term relation with China vehicles supplier. So we become more competitive in cost control, parts supply, and product variety.
We not only have special engineers to offer reliable warranty and good after-sales services to customers but also follow the situation of marketing of our customers, provide the the latest products information that we master in many years experience at this industry. The aim of us is just like the name of our company, we can run a more Far way at a more fast Speed together with you hand in hand.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits.
