Home Farspeed Vehicle Industry Co., Ltd. 300cc Four-Stroke, Water Cooled, Air-Cleaner 4x4 Quad / ATV (FPA300E-B2)

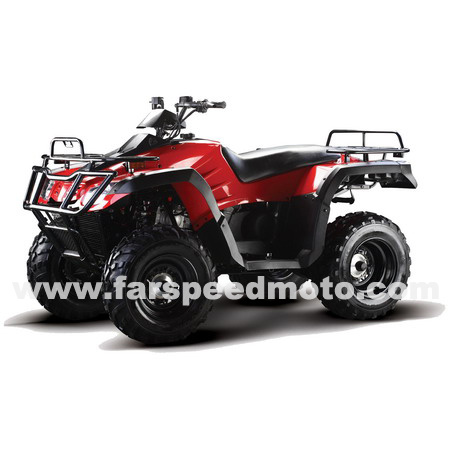

300cc Four-Stroke, Water Cooled, Air-Cleaner 4x4 Quad / ATV (FPA300E-B2)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
Specifications
| Prod Model: | FPA300E-B2 |
|---|
Product Description
Engine Type: Single cylinder, four-stroke, Water Cooled, Air-Cleaner quad/ATVDisplacement: 276cm3
Bore & Stroke: 72.5mmx66.8mm
Transmission: By Axle
Max Power: 11/6000 kw/rpm
Max Power: 15/6000 hp/rpm
Max Torque: 19/5000 Nm/rpm
Max Speed: 65km/h
Suspension Front/Rear: Double Wishbone / Single Wishbone
Shock Absorber Front/Rear: Double /Single
Brake Front/Rear: Disc brake/Disc brake
Brake Distance: 7m/30km/h
Wheel Base: 1271mm
Seat Height: 895mm
Ground Clearance: 183mm
Turning radius: 3280mm
Tire Front/Rear: 25x8-12/25x10-12
Length/Width/Height: 2016mm/1180mm/1237mm
Machine Oil Capacity: 1.6L
Max Load capacity: 156kg
Capacity of Tow: 200kg
Ignition: Electric T. C. I
Net weight / Gross weight: 303kg/330kg
