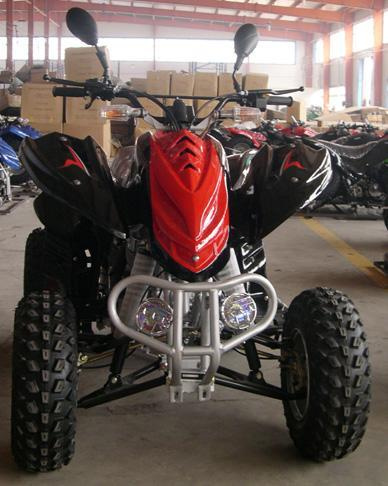

300cc ATV

Specifications

Prod Model:	ATV300

Product Description

Specification of ATV300:

Overall Dimension L*W*H: 1900*1050*1160mm
Ground Clearance: 120mm
Max. Speed: Above or come up to 80KM/H
Climbing Ability: Above or come up to 20°
Specification of Front Wheel: 22*7-10/21*8-10(on road)
Specification of Rear Wheel: 22*10-10/22*10-10(on road)

Brake system front/rear: Drum/Disk
Engine: Two Cylinder/Two Exhaust Pipe/Four Stroke Cylinder dia.
Working stroke: 78mm*61. 2mm
Efficient Capacity: 292ml
Rated Power and Rotate Speed: 16. 8KW/7500r/min
Max Torque and Rotate Speed: 20N. M/6000r/min

Compressing Ratio: 8. 9: 1
Gearshift Mode: Five Speed/reverse
Transmission: Shaft Drive
Starting System: Electric
Cooling System: Air Cooling
Fuel Tank: 7. 5L
Package measure(L*W*H): 1700*1150*1150mm
Net Weight: 220KGS
Gross weight: 250KGS
Loading: 12pcs/20", 26pcs/40", 26pcs/40"HQ
