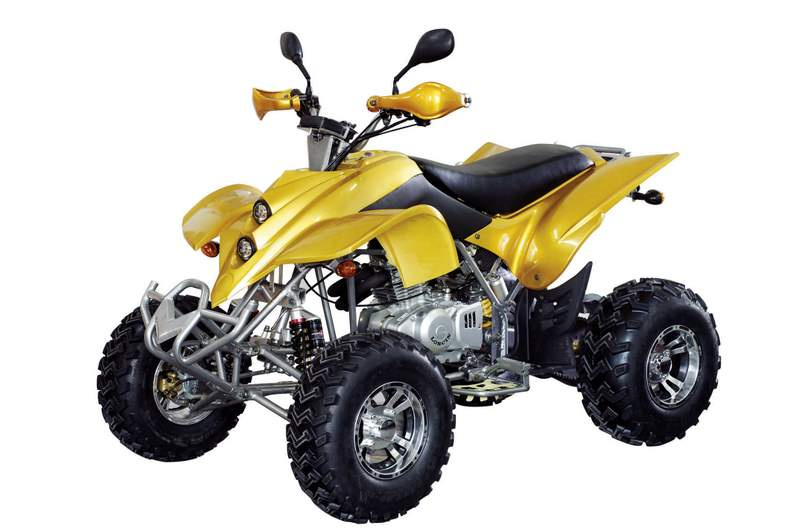

300cc ATV with EEC New Model (QY300ATV-7)

Specifications

Product Description

Specification
Engine 178FMN
Type
Single cylinder, Aircooling, four stroke
Ignition mode: C. D. I
Compression proportion: 8.9: 1
Start mode: Electric
Fuel tank capacity: 9.8L
Transmission mode: Chain
Transmission gear: Manual clutch
Driving mode: Rear wheel drive
Max power: 16.2kw/7500rpm
Max torque: 20N. M/6000rpm
Min ground clearance: 180mm
Max speed: 80km/h
Battery: 12V14Ah
Cylinder size: 78X61.2mm
Engine oil: 1640ml
Lubrication: Press splash
Displacement: 292.4ml
Chassis
Front wheels: 23x7. -10
Rear wheels: 22x10-10
Break type (F/R): Disc/disc
Front hanging: Double arm-swing
Rear hanging: Integral
Dimensions
Product dimensions: 1910x1190x1200mm
Carton dimensions: 1650x1155x830mm
Wheelbase: 1300mm
Height of seats: 830mm
Dry weight: 225kg
Load capacity 150kg
Climbing degree: 18
The smallest turning semidiameter: 3.0m
Max. Number of riders: 1

Others
Conveyance
Qty/20 GP: 14 units
Qty/40 GP: 28 units
Qty/40 HQ: 42 units
