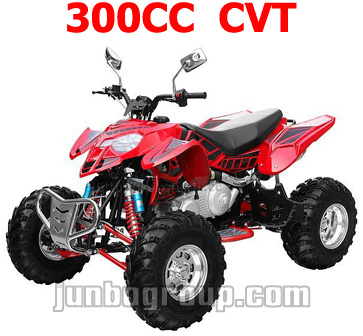

300cc ATV, Quad Bike with CVT, 300cc Automatic ATV Quad (DR787)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR787 |
|---|---|
| Engine Type: | 4 Stroke |
| Displacement: | 300CC |
| Transmission Type: | Automatic |
| Structure: | Two Side Doors |
| Transmission System: | Chain Drive |
| Certification: | CE |
Product Description
Engine Type: 1-Cylinder,4-stroke,water cooledDisplacement: 286.7cc
Max power(kw/rpm): 13/7000
Max torque(Nm/rpm): 21/5500
Starting system: electric
Lanition: C.D.I
Lubrication: Pressure and Splash
Compression Rate: 10.2:1
Final drive: Chain
Front/rear Brake: Hydraulic disc/hydraulic disc
Max.speed: 80Km/h
Fuel Capacity(liter): 10L
Battery: 12V/14Ah
Wheel Base (mm): 1260
Front tire: 23x7-10'
Rear Tire: 22x10-10
Mini ground Clearance (mm): 180
Net weight (kg): 220
Gross weight (kg): 245
Capacity Weight (kgs): 175
Product size (mm): 1870 x 1330 x 1170
Carton size (mm): 1785 x 1155 x 880
Conveyance:
40'H: 38pcs
