260cc EEC / COC Quad (ATV260B-EEC)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | ATV260B-EEC |
|---|
Product Description

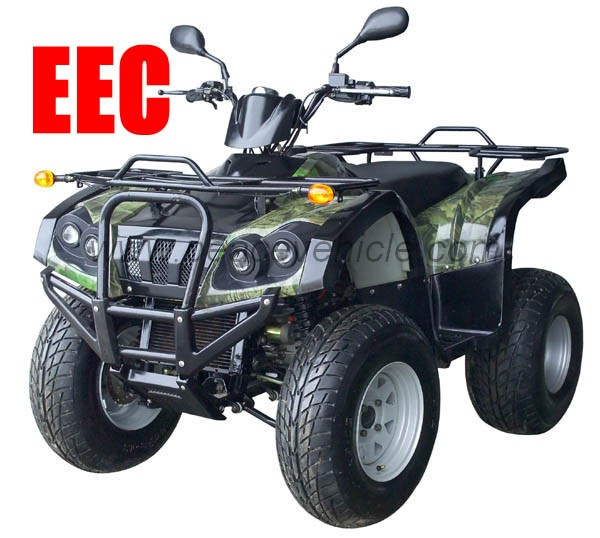

Our company is a specialized manufacturer of 50cc, 110cc, 150cc, 200cc, 250cc, 260cc. Most have get EPA/DOT, and parts of ATV EEC/COC are approved.ATV260B-EEC:
Engine: 260cc, single cylinder, 4 stroke, liquid cooled
Length*width*height: 1600*1000*1060mm
Max. Speed: 80km/h
Seat height: 900mm
Ground clearance: 190mm
Tire size: 24*8-12/24*11-10
Max. Power(kw/rpm): 11. 0/7000
Max. Torque(nm/rpm): 17. 6/5500
Compression ratio: 10: 1 lubrication: Pressure and splash
Ignition: C. D. I
Transmissioin: Cvt automatic, high/low forward with reserve
Final drive: 2wd/exclusive shaft drive system
Front suspension: Macpherson strut with 3in travel
Rear suspension: Progressive rate swing arm with 7in travel
Fuel capacity: 14l
Hitch wowing: 202kgs
Front/rear brake: Dual hydraulic disc/ hydraulic disc
Dry weight: 285kgs
Container: 29pcs/40'HQ
