Specifications
Prod Model: |
GBTST260 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
C: |
Transmission: Automatic(C. V. T System) |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
250CC |
Structure: |
Without Door |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Product Description

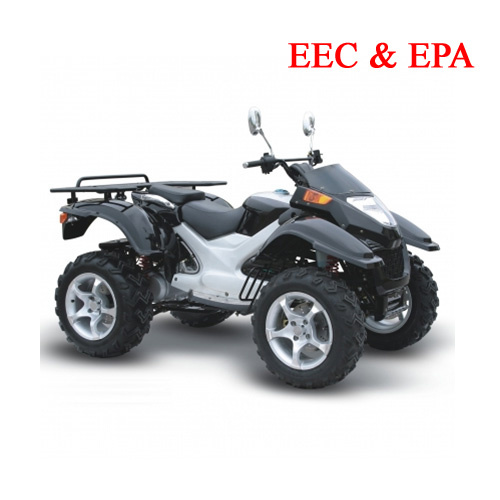

260CC ATV WITH EEC CERTIFICATE(GBTST260)(with EEC and EPA)
Available color: Black & silver white, dark blue & silver white
Optional parts: Electric winch+$68, trailer drawbar+$7
Production size: (mm) 2060*1240*1175
Wheelbase(mm): 1360
Front track: 970mm
Rear track: 975mm
Ground clearance: 175mm
Engine type: 257CC, single cylinder, water-cooled, 4-stroke
Bore*stroke: 70mm*66.8mm
Corrected compression ratio: . 10: 1
Max output: 11kw/7000rpm
Max torque: 17Nm/5000N. M/r/min
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Automatic(C. V. T system)
Maximim load: 200KG
Fuel tank: 11.3L
Climbing: 20-25
Top speed: 75KM/h
Front/Rear brake: Hydraulic disc, Right foot control
Front tire: AT24× 7-14
Rear tire: AT24× 10-14
Final drive: Shaft Drive
N. W.: G. W.: 261kg 320kg
Carton size and quantities: 2315*1305*860mm Qty/40'HQ: 27 Qty/20GP: 8
