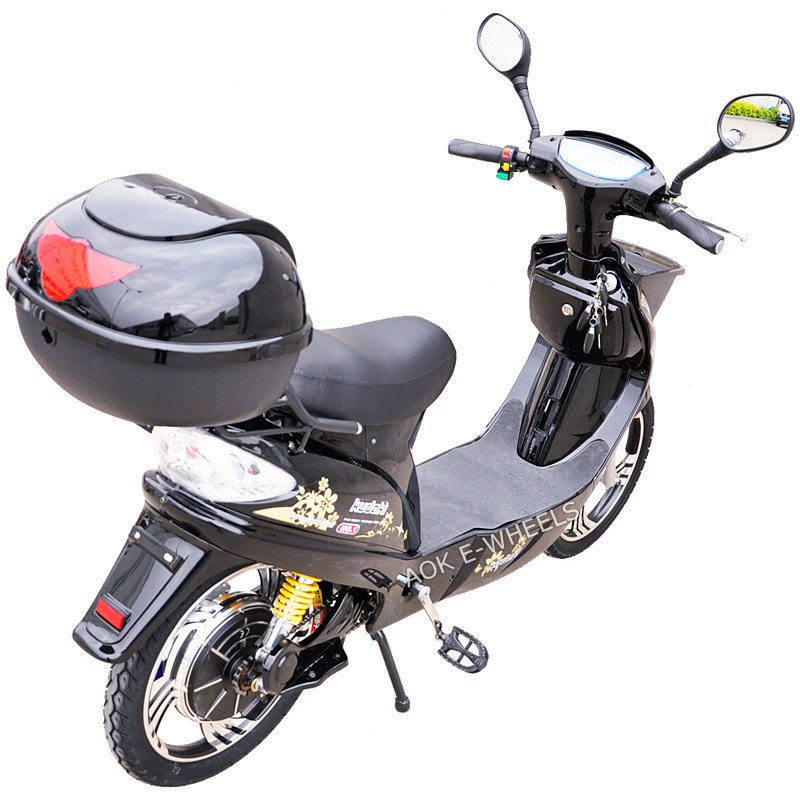

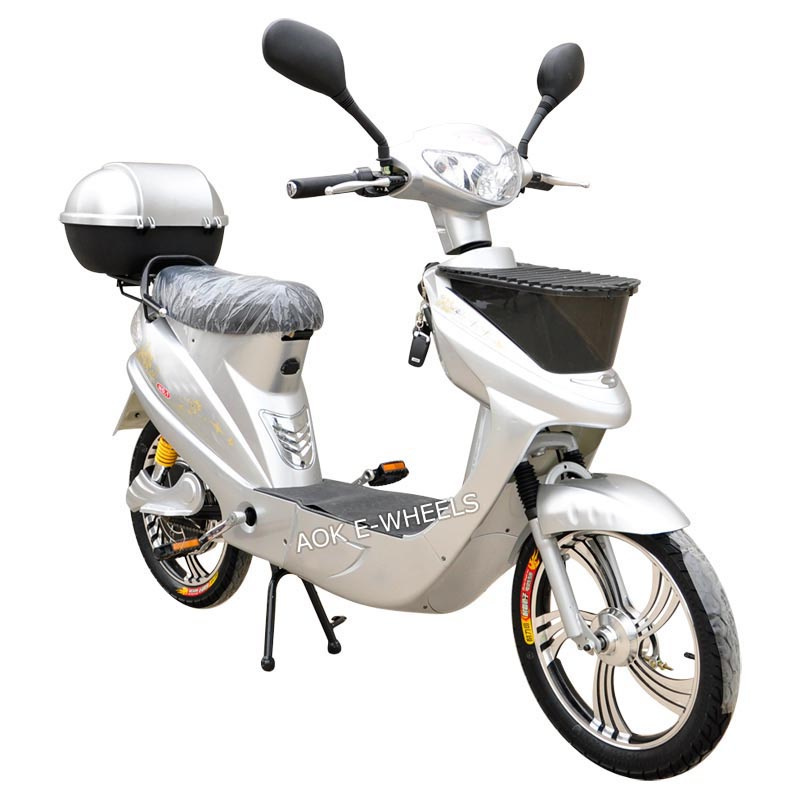

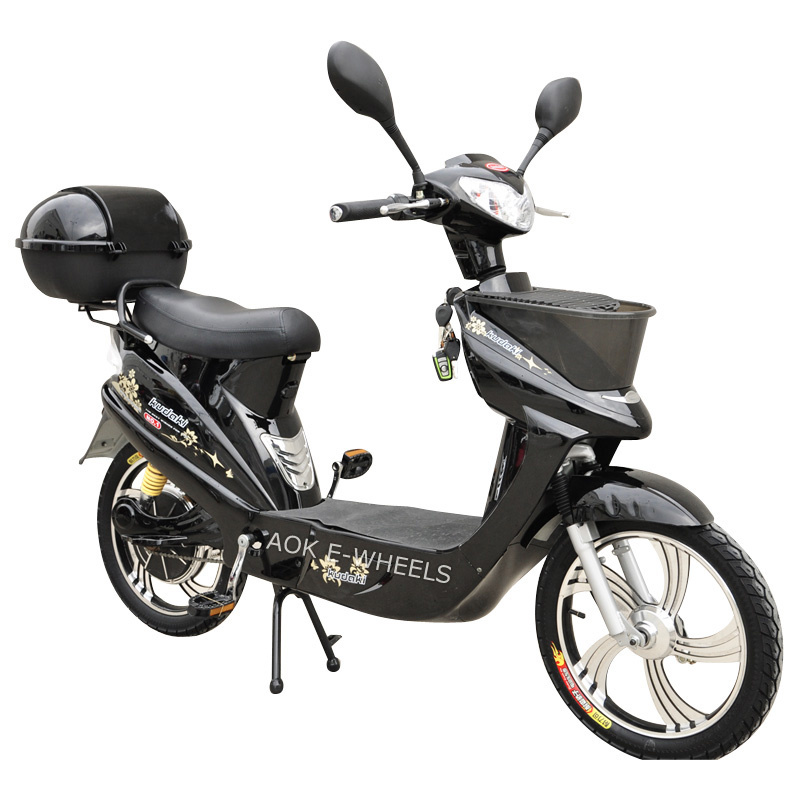

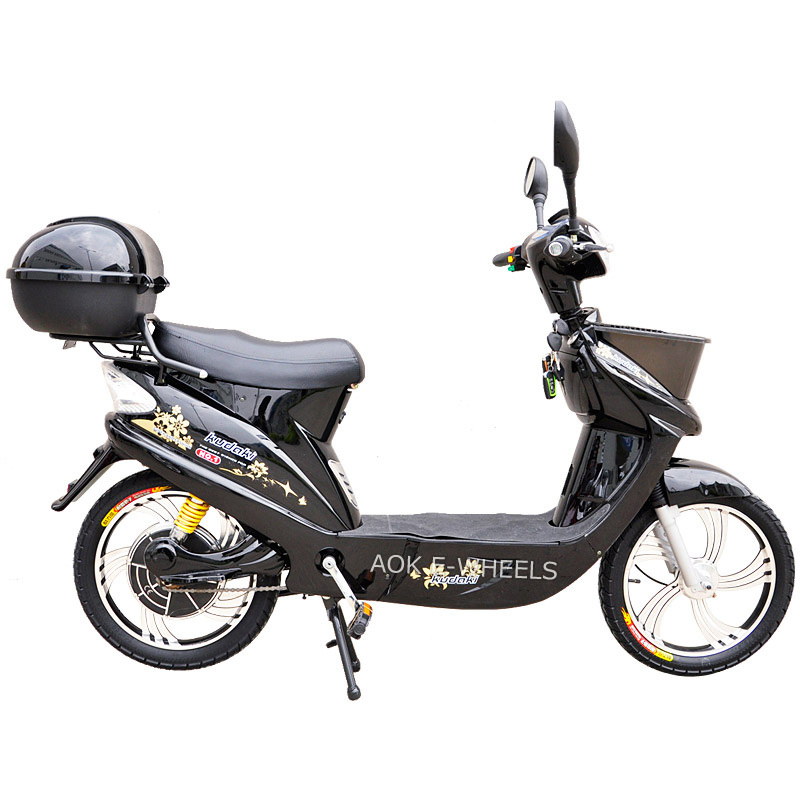

250W/350W/500W Motor Mobility Scooter, Electric Scooter
Electronic specification: 1.Motor: brushless hub motor 250W / 350W/500W 2 .Battery: 36V12AH/48V12Ah/20Ah sealed lead-acid battery All battery with electric protection circuit 3.Dashboard: common meter or LCD 4.Controller: Brushless controller 5.Charger:110V60HZ 6.Charging time: around 8 hours 7.Lamp: common bulb
Performance & Main components: 1. Max.speed: 32km/h 2. Range:40km(36V12AH);50KM(48V12AH);70km (48V20AH) 3.Max load: 120KGS 4.Tyres: 18"x2.5 5.Front brake: drum brake 6.Front fork: hydraulic pressure 7:Rear brake: Expanding brake 8.Brake lever: cut-off when braking 9.PAS: with pedal 10.Throttle: Twist intelligent speed control
Packaging: Unit packaging: Each in Color Box Packing : Each in a carton box N.W/G.W:40kgs/44kgs(36V12AH)48kgs/54kgs(48V12AH); 64kgs/70kgs(48V20AH) Qty / Export carton: 1 pc /ctn Export carton dimension: 155×32×100CM 1x20'footer FCL quantity: 55 pcs 1x40'footer FCL quantity: 119pcs 1X40'HQ: 132 pcs
Electronic specification:
Motor
brushless hub motor 250W / 350W/500W
Battery
36V12AH/48V12Ah/20Ah sealed lead-acid battery All battery with electric protection circuit
1.The price above are based on MOQ. 2.Lead time:7 days for sample order.25 days for one container. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted. Warranty: 8 months for battery; 1 year for motor; 1 year for controller; 1 year for charger. (The warranty is based on broken not made by human being.) If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
