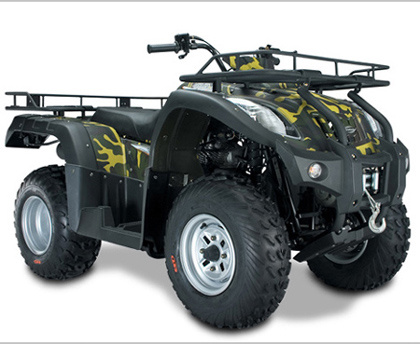

250CC YAMAHA 4-Stroke Air-Cooled EEC ATV (FPA250E-S)
| Price: | US $ 1500/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 |
| Pay Type: | L/C,T/T |
| Prod Model: | FPA250E-S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brake Type: | Disc Brake |
| Maximum Speed: | 50-75 km/h |
| Fuel: | Gas / Diesel |
| Certification: | EEC |
| Transmission System: | Shaft Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Automatic |
| Displacement: | 250CC |
Product Description
EEC 250cc EEC atvEngine type: YAMAHA engine ATV, single-cylinder, air-cooled, 4-stroke
Displacement: 229.6cbm
Transmission type: Axle/shaft
Suspensions: Front/rear suspension rod/rotary rod
Brakes front: Disk brake/right hand operation
Brakes rear: Drum brake/foot operation and left hand operation
Starter: Hand pulled recoil starter/electric starter
Ignition: CDI
Shift type: 5speed front driving and 1 speed reverse driving
Lubrication: Oil capacity of engine1.8L press/splash
Wheel: Vacuum
Max. Loading; 165kg
Maximum speed: 65km/h
Max. Angle: >=25degrees
Fuel capacity: 12L
Size(LxWxH): 1, 960 x 1, 010 x 1, 120mm
Wheelbase: 1, 160mm
Seat Height; 780mm
Ground clearance: 155mm
Drin turning: 2, 900
Types front: AT22x7-10/20kPa
Types rear: AT22x10-10/25kPa
Dry weight: 220kg
Brake distance: 7m/30km/h
Min. Fuel: 2.5L/100km
Borexstroke: 71x58mm
Compression ratio: 8.7: 1
Rated power: 10.0kW(7, 000r/min)
Max. Torque: 15.0N. M(5, 500r/min)
Transmission ratio: 2.838/1.789/1.318/1.040/0.821 and 41.5
Gasoline: RQ-90GB17930-2000
Spark plug: D7RTC
Battery type: 12V14Ah
Color available: Red, black, green, blue, camouflageyellow, armygreen
Container loading: 20`ft/10pcs 40`HQ/36pcs
Farspeed Vehicle Industry Co., Ltd. is a professional manufacture of ATVs, dirt bikes, scooters and pocket bikes. We have specialized in the research and development of sports vehicle about 6 years. Our main market include the UK, France, Germany, Finland, Sweden and Australia.
Base on the good quality products and outstanding service, our customers have performed very competitive in their market. In order to satisfy the demand of customers farther more, we have built a reliable and long term relation with China vehicles supplier. So we become more competitive in cost control, parts supply, and product variety.
We not only have special engineers to offer reliable warranty and good after-sales services to customers but also follow the situation of marketing of our customers, provide the the latest products information that we master in many years experience at this industry. The aim of us is just like the name of our company, we can run a more Far way at a more fast Speed together with you hand in hand.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits.
Base on the good quality products and outstanding service, our customers have performed very competitive in their market. In order to satisfy the demand of customers farther more, we have built a reliable and long term relation with China vehicles supplier. So we become more competitive in cost control, parts supply, and product variety.
We not only have special engineers to offer reliable warranty and good after-sales services to customers but also follow the situation of marketing of our customers, provide the the latest products information that we master in many years experience at this industry. The aim of us is just like the name of our company, we can run a more Far way at a more fast Speed together with you hand in hand.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits.
