Specifications
Prod Model: |
Spider LS-21 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
250cc Water Cooled Dirt Bike Spider |
Certification: |
CCC |
Displacement: |
126-250CC |
Starting System: |
Kick Start and Electric Start |
Engine: |
4 Stroke |
Cylinder Quantity: |
4 |
Fuel: |
Gas / Diesel |
Condition: |
New |
Tank Capacity: |
8L |
Product Description

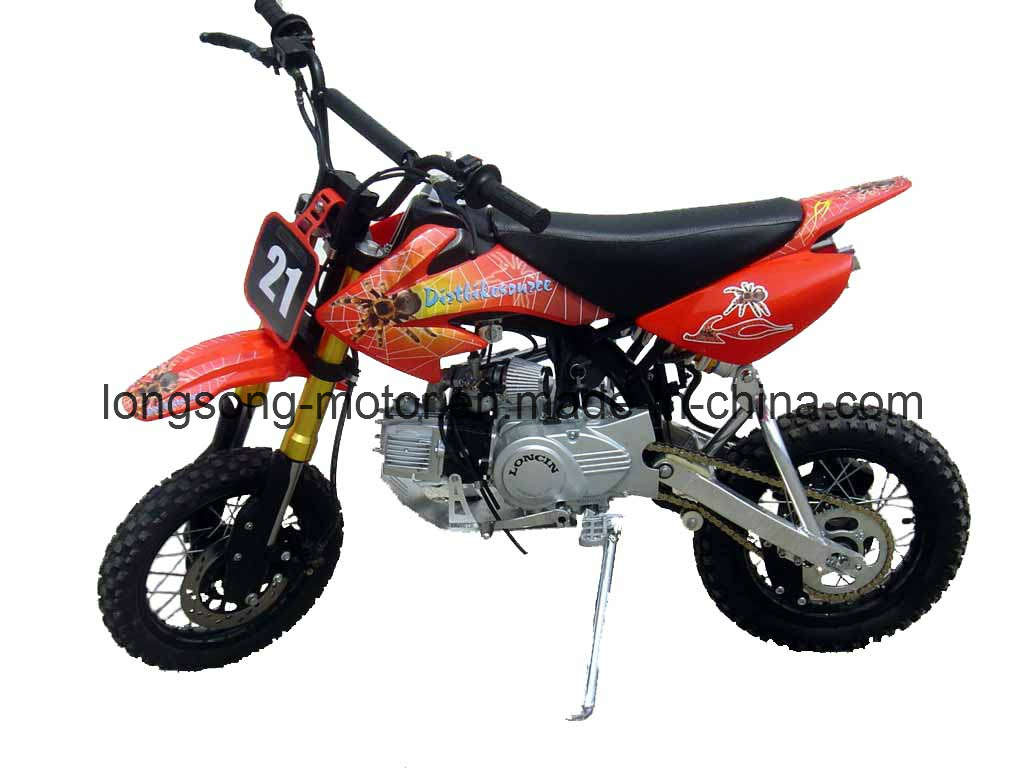

250CC water Cooled Dirt Bike Spider
Characteristic:
Item name | 250CC water Cooled Dirt Bike Spider |
Dimension(L*W*H)(mm): | 2140x 820x 1235 mm |
Start Method | electric starter/Kick Start |
Color | According to Customer requirements |
Front/rear Brake: | Disk |
Lead time | Up to quantity |
Shipping methods | 1.By air or express for samples |
2.By sea for large formal order, we offer EXW Shanghai or FOB Shanghai |
E N G I N E
Engine Type 4-Stroke; Single Cylinder
Bore & Stroke
70X64.8mm(250CC water
Cooled)
Carb. Size 30MM (250CC)
Battery 12N9-4B-1(12V9A)
Cooling water cooled
Starter Kick Start & E-start
Max Power 13kw/7000r/Min
Max Speed 100km/h
Ignition CDI
Compression
Ratio 9.5: 1;
Fule Type >90#(GB17930-1999)
Engine Machine
Oil 15W/40se
D R I V E T R A I N
Transmission
5-Speed, international shift
Pattern
Clutch Manual
Final Drive Chain KMC 530
C H A S I S / S U S P E N S I O N / B R A K E S
Frame / Swing
Arm
High Strength Steel
Front Forks
54mm wide inverted Front forks
With 265mm travel and 910mmlength
Rear Shock Adjustable
F & R Brakes F & R Double Piston Caliper
D I M E N S I O N S / C A P A C I T Y
Seat Height 930mm/880mm
Wheel Base 1420mm
Handle Height 1130 x 820mm
Ground Clearance 280mm
Tank Capacity 8L
F & R Wheel
Front 90/90-21;
Rear 140/80-18
Engine & Rear
Sprocket Tooth Count
12(Engine); 38(Rear Sprocket)
Product L / W / H 2140x 820x 1235 mm
Package L / W / H 180 X 43 X 95cm
G. W. / N. W. 118kg/124kg
O T H E R
Colors Apollo Black, Dark Gary
Decals
Orion / Hyena? Trade decal (OEM iswelcomed)
Toolset Standard
