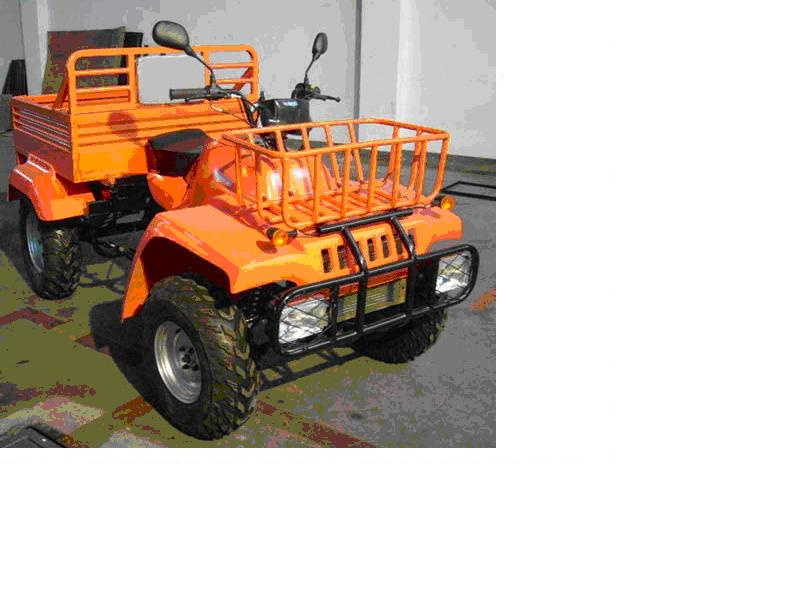

250cc Utility Vehicle ( TL250UTV )

Specifications

Prod Model:	TL250UTV

Product Description

Technical specification of TL250UTV
1) Engine type: Single Cylinder,4-stroke,air-cooled , 5 forwards gears with reverse
2) Displacement: 230
3) Max Torque: 13N.M/6500/rpm
4) Max Power: 11.5kw/6500rpm
5) Compression ration: 9.2:1
6) Ignition system: CDI
7) Oil capacity: 9L
8) Economical oil exhaust(L/100km): 3.5
9) Max speed: 50km/h
10) Starter system: Electric /Foot
11) Transmission: shaf drive
12) Brake Type: drum brake/disc brake
13) Wheelbase: 1550mm
14) Ground clearance:190mm
15) Tires (front / rear): 23 X 7-10/ 25 X 8-12
16) N.W.:275KGS
G.W.:320KGS
17) Product dimension: 2460*1270*1275
Carried box dimension: 1080*1030*480
18) Carton dimension(Don' t take down carried box): 2550*1100*840
Carton dimension( Take down carried box): 2280*1130*840
19)Qty/20FT: 10 units (take down the carried box)
Qty/40HQ: 23units(Don' t take down the carried box)
