Specifications
Prod Model: |
FPA250E-B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Fuel: |
Gas / Diesel |
Certification: |
EEC |
Transmission System: |
Chain Drive |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Transmission Type: |
Manual |
Displacement: |
250CC |
Product Description

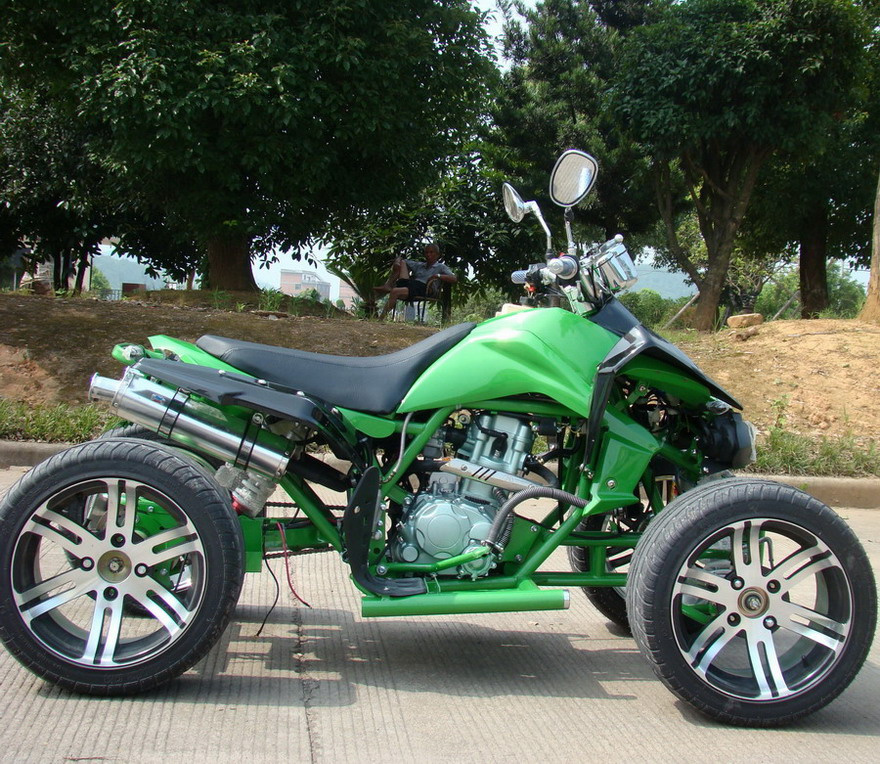

250CC Racing ATV/250CC EEC Racing ATV QUAD
250CC EEC Water-Cooled ATV
ENGINE
Engine type: 250CC Single cylinder water-cooled four-stroke
Bore and stroke: 67 x 65mm
Compression proportion: 10.5 : 1
Maximum power: 12.5kw / 6500rpm
Maximum torque: 18.5N.m / 5500rpm
Ignition mode: CDI
Starter mode: Electric recoil backup
Engine oil capacity: 0.9L
DRIVE TRAIN
Clutch: manual
Transmission: speed adjustment 4 speed with reverse
Final drive: chain
CHASSIS / SUSPENSION / BRAKES
Front suspension: double wishbone suspension
Rear suspension: mono shock swing-arm
Front brakes: disk
Rear brakes: disk
Front tires: 12 inch 235/30-12 (Alloy rims)
Rear tires: 12 inch 235/30-12 (Alloy rims)
Power source: 12V / 14AH
DIMENSION
Product dimension: 1900 x 1115 x 886mm
Front Track: 810mm
Rear Track: 760mm
Seat Height: 810mm
Ground Clearance: 110mm
Turning radius: 3000mm
Fuel tank capacity: 5.0L
Dry weight: 175KG
Load capacity: 160KG
Max. Speed: 80-120 km/h
OTHER
Fuel No.: RQ 90
Lubrication type: pressure splash
Idling/turning speed: 1500rpm
Climb capability: 30
Parking brake: mechanical lock
Rider capacity: 2 person
Option color: metallic red, metallic blue, metalic black, metallic silver, metallic white
PACKING
Carton dimension: 1680 x 1100 x 760mm
Conveyance
Quantity / container: 20'GP / 18 units 40'HQ / 42units
