250cc EEC Road Legal ATV (JY250-1A)
| Price: | US $ 1650-1950/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 3/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JY250-1A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colors: | Grey, Red, Yellow, Blue, Green, Black, Orange |
| Delivery Time For Mass Production: | 25-30days After Received The 30% Deposit |
| MOQ: | One Piece |
| Max Distance Of Full Fuel: | 150-180km |
| Front Huajian Tire Spec: | 185/30-14" |
| Rear Huajian Tires Spec: | 235/30-14" |
| Vehicle Dimensions: | 203*130*100cm |
| Load Capacity: | 200kg |
| Fuel Tank Capacity: | 17L |
| Max Speed: | 95km/H |
| Transmission System: | Chain Drive |
| Transmission Type: | Manual |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 250CC |
| Structure: | Without Door |
| Brake Type: | Disc Brake |
| Condition: | New |
| Maximum Speed: | 95km/H |
Product Description
250CC Road Legal ATV (EEC Approved)This is a unique quad,
This is a new design concept,
This is a chanllege to traditional concept of quad,
It named —— CAV ! Comfortable Activity Vehicle.
Product Description
| 1, Engine type | 250CC, 4-stroke, Water Cooled. |
| 2, Max. torque | 18.5Nm/4500rpm |
| 3, Max power | 12.5kw/7500rpm |
| 4, Ignition type | CDI |
| 5, Transmission | Manual |
| 6, Brake (Front/Rear) | Disc/Disc |
| 7, Starting system | Electric start |
| 8, Battery spec | 12V,9AH |
| 9, Front suspension details | Double A x swing arm,air chamber shock absorbers |
| 10, Rear suspension details | Inner ballonet absorber |
| 11, Front tire spec | 185/30 - 14 |
| 12, Rear tires spec | 235 /30 - 14 |
| 13, Vehicle dimensions | 203x 130x 100cm |
| 14, Wheel base | 138cm |
| 15, Seat height from ground | 95cm |
| 16, Ground clearance | 110mm |
| 17, Loading capacity | 200kg |
Packaging & Shipping
First put each item in steel frame and then put them together into the carton box.
| 18, G.W | 230kg |
| 19, N.W | 210kg |
| 20, Packing size | 183x 77 x 86cm |
| Capacity: | |
| 21, Qty/20" GP | 18 PCS |
| 22, Qty/40" GP | 36 PCS |
| 23, Qty/40" HQ | 48 PCS |
| Warranty: |
| Engine and frame :12 months,others 3 months. |

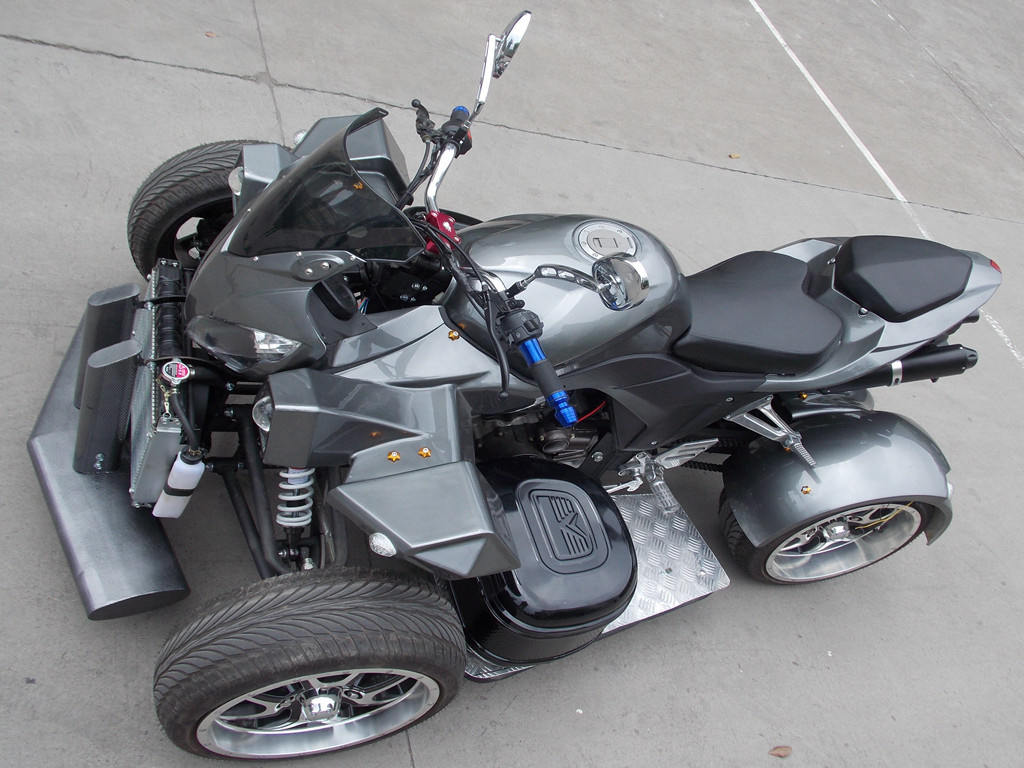

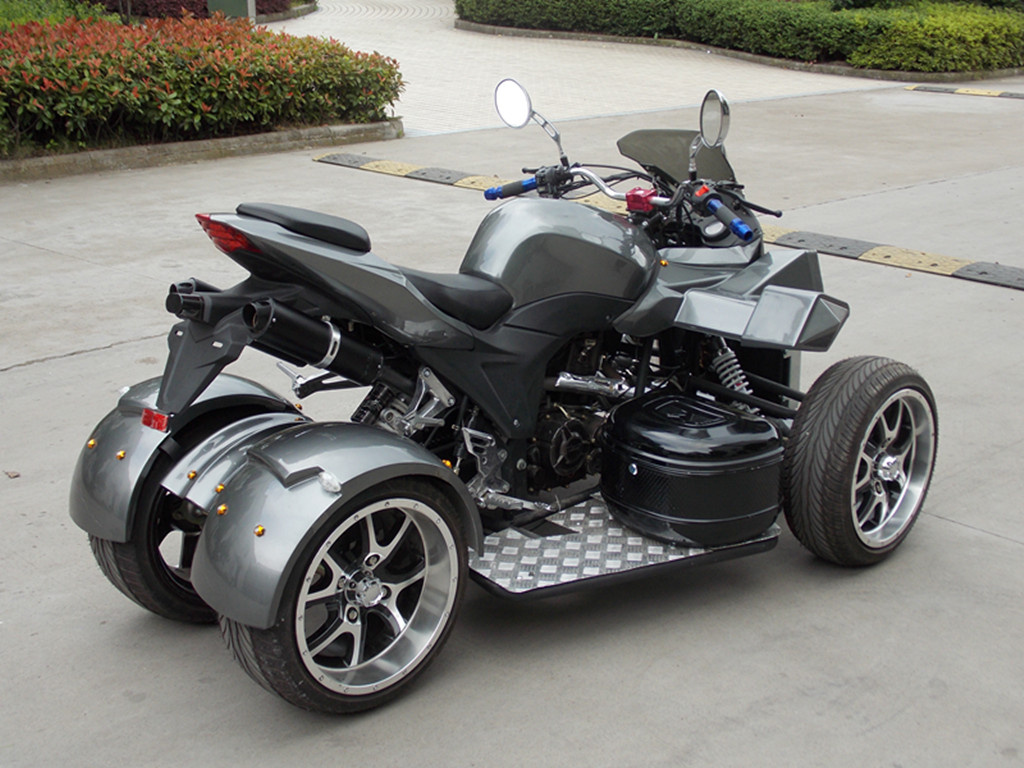

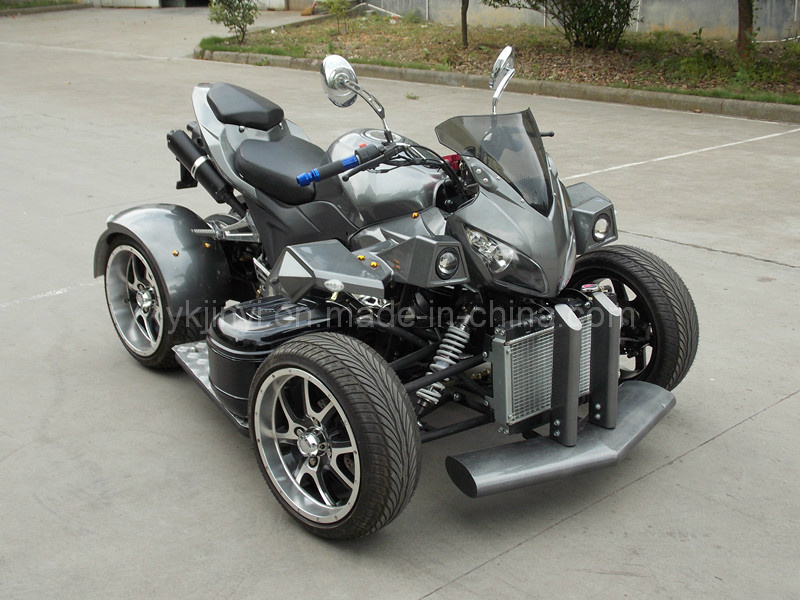

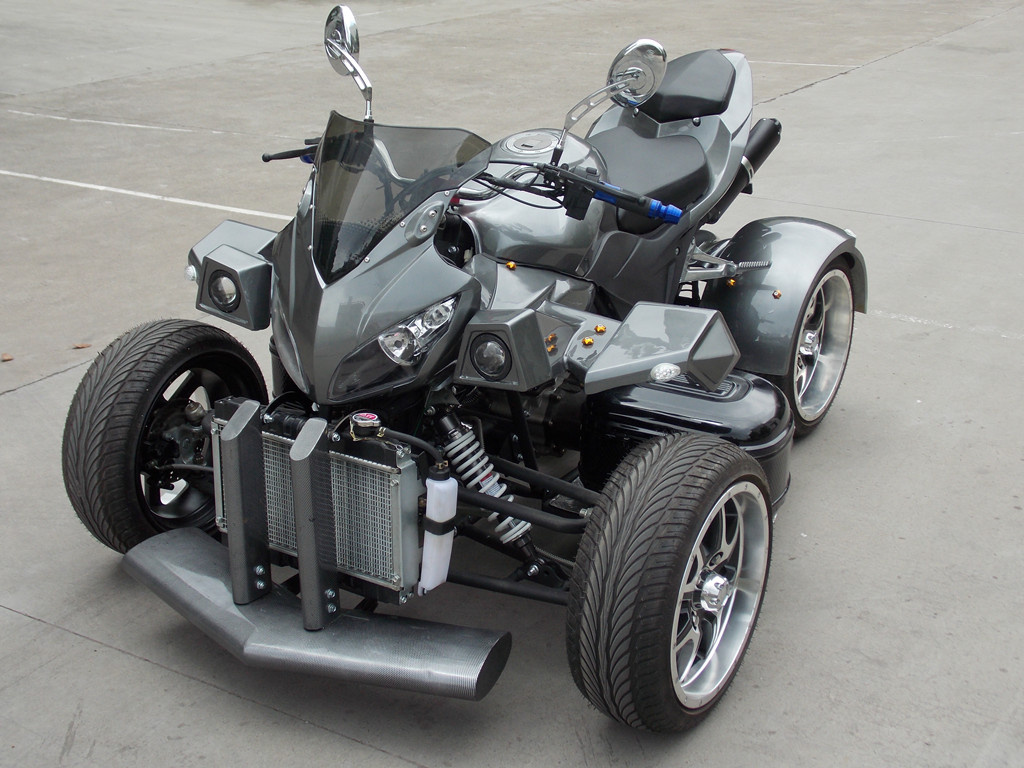

Reference Photos
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: No. All bikes are to be produced according to your order including samples.
3. Q: What's the delivery time?
A: It usually takes about 25 working days to produce an order from MOQ to 40'HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Jinyi staff always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
6. Q:What's your warranty terms?
A: for engine and frame is one year,and other parts are 3 months.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. JinYi Vehicle.co.ltd has been alibaba's Gold supplier since 2013. If you check with alibaba, you will see that we have never got any complaint from our customers.
