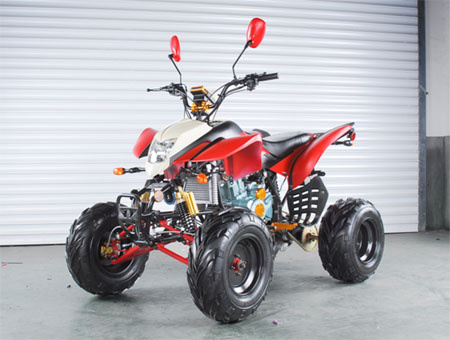

250CC EEC ATV (XY-250EC-05)

Specifications

Prod Model:	XY-250EC-05

Product Description

Specification
1) Dimensions (L x W x H): 1,680 x 1,115 x 1,120mm
2) Wheelbase: 1,160mm
3) Engine type: 250CC, single cylinder, water-cooling, 4-stroke
4) Start mode: electric
5) Power: 10.5kW/7,500r/min
6) Max. torque: 12.1N.m/6,500r/min
7) Max. speed: 75km/h,
8) Min. ground clearance: 120mm
9) Dry weight: 155kg
10) Transmission mode: chain
11) Break type (F/R): disc/disc
12) Power source: 12V, 9A
13) Climbing degree: 20 degrees
14) Fuel tank capacity: 5.5L
15) Front hanging: integral ballonet absorber
16) Rear hanging: inner ballonet absorber
17) Tires:
a) Front wheels: 21 x 7 - 10
b) Rear wheels: 20 x 10 - 10
18) Cylinder size: 63.5 x 62.2mm
19) Displacement: 250CC
20) Transmission: 4 gears with one reverse gear, manual clutch
21) Seat height: 880mm
22) Min. turning radius: 2,650mm
23) Parking trig: mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1.1L
27) Gas cylinder number: 1
28) Max. number of riders: 1
29) Lubrication: press splash
30) Compression proportion: 9.2:1

Outer packing:
Carton dimensions: 148 x 95 x 88cm

Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
