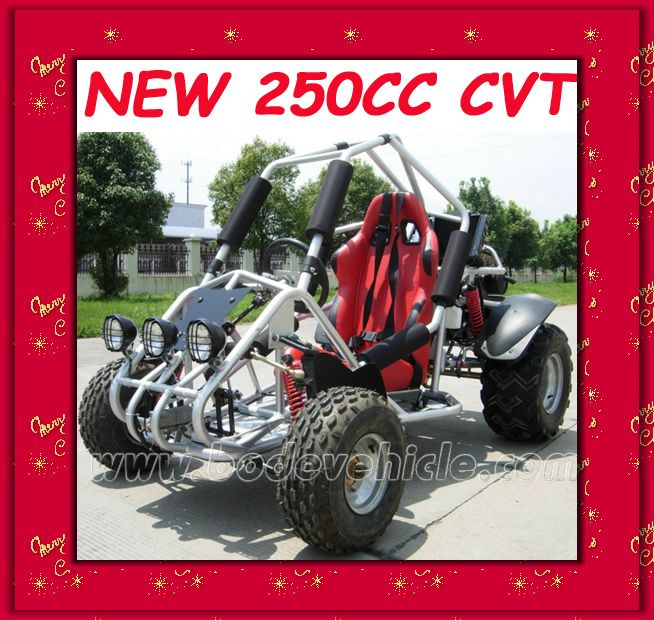

Home Zhejiang Bode Industrial Co., Ltd. 250CC CVT Go Kart (MC-462)
Specifications
| Prod Model: | MC-462 |
|---|---|
| Markets: | Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start-up: | Electric |
| Transmission: | Chain |
| Displacement: | 250CC |
| Certification: | CE |
Product Description
CVT go kartCvt go kart with chain drive
Cvt go kart with CE
Cvt go kart with Rrear Disc Brake
Cvt go kart with auto engine
Item No. MC-462
Discription
1) Engine type 250CC water-cooled
2) Displacement 250CC,
3) Cooling water-cooled
4) Max horsepower 11kw/7.000rpm
5) Max torque 17.6/5, 500 (N. M/r/min)
6) Bore*stroke 72x60mm
7) Max speed 70km/h
8) Climbing ability
9) Ignition CDI
10) Starting system Electric start
11) Battery 10V, 9Ah
12) Engine oil 10L
CHASSIS etc
1) Clutch sem-auto clutch
2) Transmission chain
3) Driveline Shaft
4) Driving wheel Rear wheel force
5) Suspension, front/rear
6) Brakes Front brake: Disc brake Rear brake: Disc brake
7) Brake operation disc brake
8) Tires, front/rear 19 x 7.00-8 /22 x 11-10
9) Fuel capacity/type 7.4L
10) Weight, G. W. /N. W 238kg /263kg
11) Max load 150kg
DIMENSIONS
1) Wheelbase 1480mm
2) Height to seat 440mm
3) Min ground clearance 170mm
4) Carton size 2290mm x1190mm x 830mm
5) Shipping info Qty/40' HQ: 30PCS
ATV and go kart HS code: 8703101100
