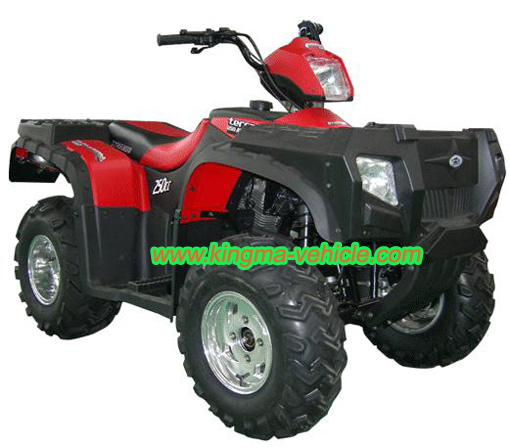

Home Zhejiang Kingma Vehicle Co., Ltd 250cc ATV with EPA Approval (KM250DA-7CB)
| Prod Model: | KM250DA-7CB |
|---|
Product Description
Specification:Engine:
Type: Single cylinder, air cooling, four stroke
Ignition model: CDI
Compression proportion: 8.7: 1
Start mode: Electric / electric manual
Fuel tank capacity: 11L
Transmission model: Axis
Power: 10KW / 7500r / min
Max torque: 15N. M / 6000r / min
Min. Ground clearance: 155mm
Max. Speed: ≥60km / h
Power source: 12V, 14Ah
Transmission: 5 gears, automatic clutch.
Cylinder size: 71×58mm
Engine oil: 1.6L
Gear oil: 0.25L
Lubrication: Press splash
Displacement: 229.6ml
Parking trig: Mechanical lock
Gas cylinder number: 1
Chassis
Front wheels: 22×7-10
Rear wheels: 22×10-10
Break type(F/R): Disc / drum
Front hanging: Single arm-swing
Rear hanging: Integral
Dimensions
Product dimensions: 1920×1030×1200mm
Carton dimensions: 1970×1120×880mm
Wheelbase: 1160mm
Height of seats: 820mm
Dry weight: 240kg
Load capacity: 165kg
Climbing degree: ≥25 degree
Min. Turning radius: 2900mm
Max. Number of riders: 1
Others
Conveyance:
Qty / 20Ft: 10units
Qty / 40Ft: 24units
Qty / 40HQ: 36units
Color: Red / yellow / blue / green / camouflage
