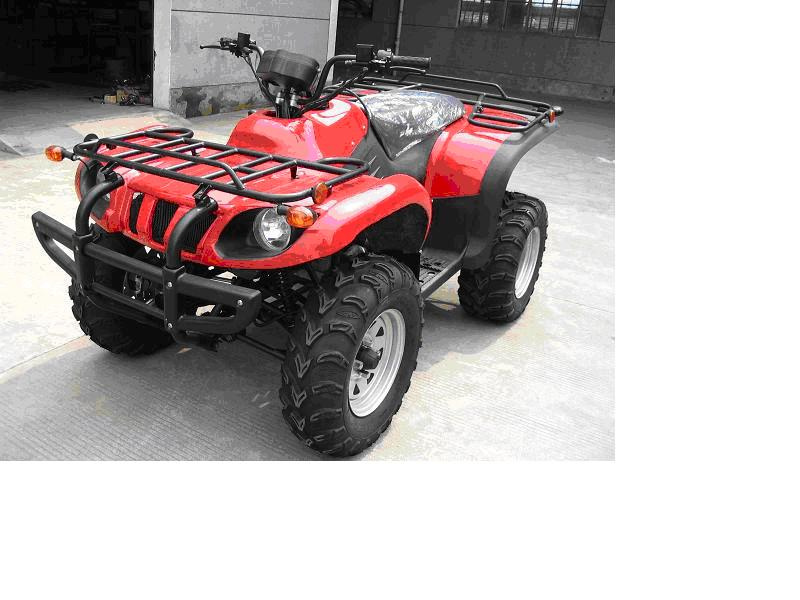

Home Ningbo Yinzhou Tongli Sports Vehicle Factory 250CC ATV (TL250ATV-H)
| Prod Model: | TL250ATV-H |
|---|
Product Description
Technical specification of TL250ATV-H1) Engine type: Two Cylinder,4-stroke,water-cooled , automatic with reverse
2) Displacement: 244cc
3) Max Torque: 17.6N.M/5500/rpm
4) Max Power: 11kw/7000rpm
5) Compression ration: 10.0:1
6) Ignition system: CDI
7) Oil capacity: 9L
8) Economical oil exhaust(L/100km): 3.8
9) Max speed: 70km/h
10) Starter system: Electric
11) Transmission: shaf drive
12) Brake Type: disc brake/disc brake
13) Wheelbase: 1165mm
14) Ground clearance:250mm
15) Tires (front / rear): 25 x 8-12 / 25 x 10-12
16) N.W.:230KGS
G.W.:270KGS
17) Product dimension: 2120*1140*1200
18) Carton dimension(Don't take down wheel): 2200*1230*1050
Carton dimension( Take down wheel): 2200*1200*840
19)If you take down the wheel:
Qty/20FT: 10 units
Qty/40HQ: 27units
If you not take down the wheel:
QTY/20FT: 8 units
Qty/40FT: 18units
Ningbo Yinzhou Tongli Sports Vehicle Factory is a medium-sized and comprehensive manufacturing company that integrates research and exploitation, manufacture of ATVs, Dirt Bikes, Go-Carts, Utility Truck, Trikes, Three Wheeled Motorcycles, Golf Carts, Mobilemotor Parts and so on.
The company occupies an area of 10, 000 square meters, and has fixed asset of 10 million Yuan and over 200 staff, which has annual output of 200, 000 all kinds of vehicles. We have exported our products to Europ, USA, Australia, Kuwait, Japan and so on.
Positioning in a high starting point, the company constantly pursues and introduces new technology and management and adjusts and perfects the structure of products, strengthens inside basic management, guarantees product quality and exploits new market.
"Regards today is backwardness"--- that urges on Tongli Company to innovate future.
People from Tongli are willing to create brilliance with you together.
The company occupies an area of 10, 000 square meters, and has fixed asset of 10 million Yuan and over 200 staff, which has annual output of 200, 000 all kinds of vehicles. We have exported our products to Europ, USA, Australia, Kuwait, Japan and so on.
Positioning in a high starting point, the company constantly pursues and introduces new technology and management and adjusts and perfects the structure of products, strengthens inside basic management, guarantees product quality and exploits new market.
"Regards today is backwardness"--- that urges on Tongli Company to innovate future.
People from Tongli are willing to create brilliance with you together.
