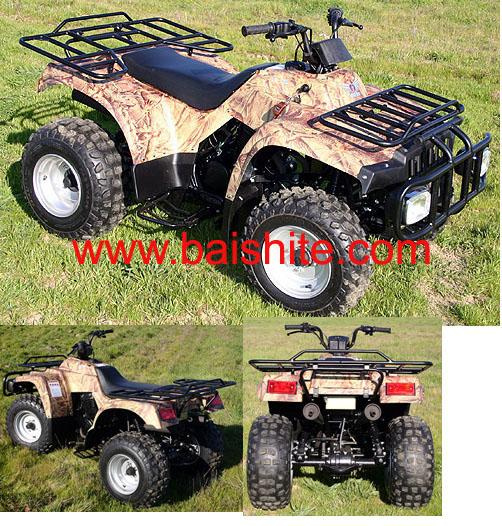

Home Zhejiang Baishite(Best) Industry & Trade Co., Ltd. 250CC ATV (GS-BEST-ATV07)
| Prod Model: | GS-BEST-ATV07 |
|---|
Product Description
ATV-ATV250CCATVEngine type: 4-stroke, air cooled, single cylinder
Transmission system: Chain
Bore x stroke (mm): 71 x 58;
Piston displacement: 229.6
Maximum power (kW/r/min): 10/6, 000-7,000;
Maximum torque (N. M/r/min): 15/5,500-6,500
Starting system: Electric/recoil backup
Transmission: 5 speed, semi-automatic ATV
Min turning radius (mm): 2,900
Seat height (mm): 810 x 20;
Ground clearance: 155
Brake (front/rear): Disc/drum;
Parking brake: Mechanical lock
Tire front: AT23 x 7-10;
Tire rear: AT22 x 10-10
Fuel tank capacity (L): 12;
Engine oil capacity (L): 1.6;
Gear oil capacity (L): 0.27
Front suspension: Independent front suspension; Rear suspension: Swing arm
Ignition type: C. D. I;
Battery: 12V-14Ah
NW/GW (kg): 215/245; Dry weight (kg): 234
Wheel base: 1, 160mm
Lubrication: Pressuring splash;
Compression ratio: 8.7: 1
Overall size (mm): 1,940 (L) x 1,050 (W) x 1,160 (H)
Carton dimensions: 1,950 x 950 x 900mm
Max load capacity (kg): 165;
Container capacity: 12pcsATV/20'FCL; 36pcsATV/40'HQ
Since 2001, we have been manufacturing 20, 000 CE-approved gasoline and electric scooters and atv and dirt bike monthly. Our products are exported to markets worldwide -- including North America, Europe and Southeast Asia. Now our company also develop some fitness items by ourself.
We have an eight member R&D team ready to handle your OEM orders. We regularly develop new designs and can produce samples in two weeks.
Our 10, 000-square-meter workshop has five production lines and advanced QC equipment for motors, chargers, batteries, controllers and more. We are one of the few mainland China scooter manufacturers that inspects every part of our scooters, including the motor, for power, speed and balance. Our trace QC system records every part for easy monitoring. This and our ISO 9001: 2000-certified management help ensure the high quality of our merchandise.
