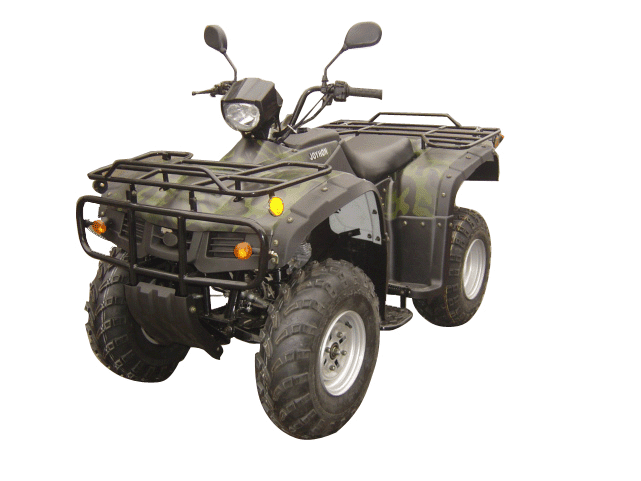

250CC ATV EEC

Specifications

Prod Model:	250ST-EEC

Product Description

Engine Type: 4-Strokes.Air-Cooled.
Transmission System: Shaft Drive
Bore * Stroke(mm): 71 * 58
Piston Displacement(ml): 229
Maximum Power(kw/r/min): 10/7000±5%
Maximum Torque(N.M./r/min): 16/6000±5%
Starting System: Electric Sarter/Recoil backup
Transmission: 5-Speed.Semi-automatic
Seat Height(mm): 810±20
Axle base(mm): 1160
Ground Clearance(mm): 360
Brake(Front/Rear): Disc/Disc
Tyre, Front: AT 23 * 7-10
Tyre, Rear: AT 22 * 10-10
Ignition Type: C.D.I
Fuel Tank Capacity(L): 12
Front Suspension: Indeperdent Suspension
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 165
Engine Oil Capacity(L): 1.6
Gear Oil Capacity(L): 0.27
Dry Weight(kg): 220
Rider Capacity: 1 Person
Wheel Base: Front 800 rear 775
Overall Height(mm): 1130
Lubrication: Press Splash
Overall Length(mm): 1940
Overall Width(mm): 1050
Compression Ration: 8: 1
Cylinder Arrangement: Single Cylinder
