Home Chongqing Union Co., Ltd. 2016 Motorcycle Racing Moto Fz Fi 150cc 200cc 250cc 300cc

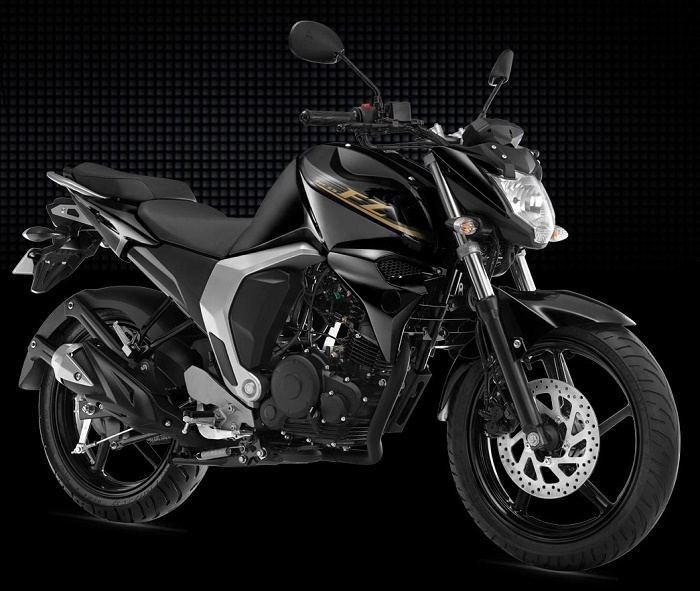

2016 Motorcycle Racing Moto Fz Fi 150cc 200cc 250cc 300cc
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P |
Specifications
| Prod Model: | FZ Fi, FZ-S 2016 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Racing Motorcycle |
| Displacement: | 126-250CC |
| Engine Type: | 4-Stroke |
| Fuel: | Gas / Diesel |
| Certification: | CQC |
| Condition: | New |
| Year Range: | 2016 |
Product Description
| FZ Fi 2.0 version 2016 | |
| Engine | |
| Engine type | Air cooled, 4-stroke, SOHC, 2-valve |
| Displacement | 160cc |
| Bore & Stroke | 62mm x 53mm |
| Compression ratio | 9.2:1 |
| Maximum output | 9.0 kW / 8000 rpm |
| Maximum torque | 11.5 N.m / 6000 rpm) |
| Starting method | Electric |
| Lubrication type | Force-feed lubrication, wet |
| Fuel Supply | CDI |
| Clutch type | Wet, multiple-disc |
| Transmission type | 5-speed |
| Cylinder layout | Single Cylinder |
| Battery | 12V, 4.0AH, Sealed type |
| Dimensions | |
| Overall Length-Width-Height | 1,990mm-770mm-1,030mm |
| Seat height | 790 mm |
| Wheelbase | 1,330 mm |
| Minimum ground clearance | 160 mm |
| Kerb weight | 132 kg |
| Fuel tank volume | 12L |
| Chassis | |
| Frame type | Diamond |
| Suspension (front/rear) | Telescopic / Monocross |
| Brake type(front/rear) | Disc/Drum |
| Tire size (front) | 100/80-17 |
| Tire size (rear) | 140/60-R17 |
| Headlight | 12 V, 35/35W |
| Turn signal light(front/rear) | 12V,10WÃ-2 / 12V,10WÃ-2 |
