Specifications
Prod Model: |
46AT0511-A1303 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wheel Number: |
4 |
Compression Ratio: |
9.0:1 |
Piston Displacement: |
50cc |
Engine: |
Single-Cylinder, 4-Stroke, Air-Cooling |
Battery: |
12V 4ah |
Fuel Tank Volume: |
3.4L |
Oil Consumption: |
3.4L/100km |
Lubricating Oil: |
Se15W/40 Sf10W/30 |
Starting System: |
Cdi Electric Start |
Electric Sparking Plug: |
A7rtc |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
DOT |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
50CC |
Structure: |
Without Door |
Maximum Speed: |
<50 km/h |
Brake Type: |
Disc Brake |
Condition: |
New |
Brand: |
Mademoto |
Power: |
50cc |
Product Description
ATV

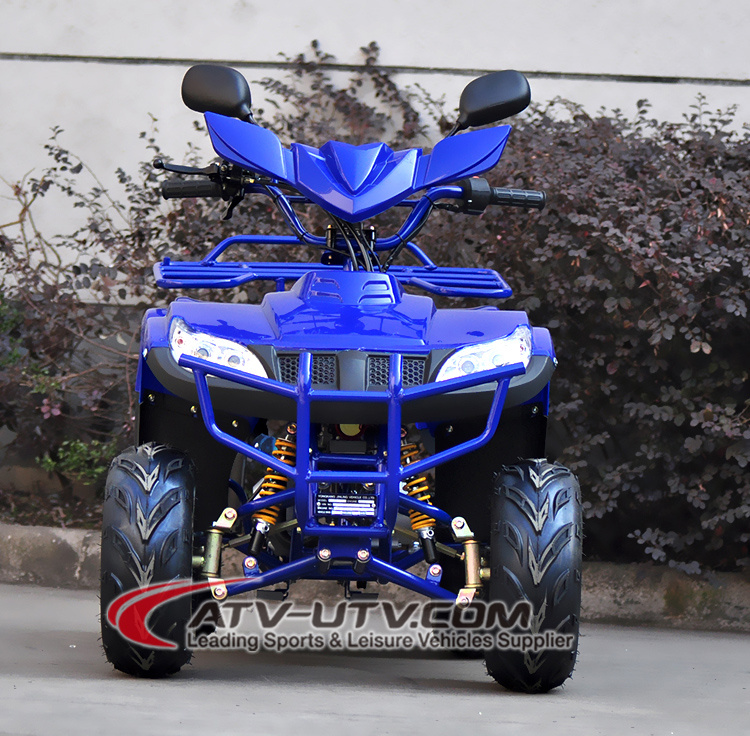

50cc Gas-Powered 4-Stroke Engine Quads ATV
AT0511-A
Key Specifications:
1. Wheel number: 4
2. Compression ratio: 9.0: 1
3. Piston displacement: 50cc
4. Engine: Single-cylinder, 4-stroke, air-cooling
5. Battery: 12V 4AH
6. Fuel tank volume: 3.4L
7. Oil consumption: 3.4L/100km
8. Lubricating oil: SE15W/40 SF10W/30
9. Starting system: CDI electric start
10. Electric sparking plug: A7RTC
11. Drive system: Chain drive
12. Brake: Front: Drum brake; Rear: Disc brake
13. Max speed: 40km/h
14. Load capacity: 85kgs
15. Rated power: 2.0Kw/8000r/min
16. Rated torque: 2.6N. M/5000r/min
17. Wheel: Front and rear 145/70-6
18. Seat height: 62cm
19. Gearshift method: Automatically
20. Clutch method: Automatic clutch
21. Break method: Manual brake
22. Shock absorption method: Front and rear hydraulic shock absorber
23. Color available: Black, blue, silver, red optional
Package: Iron cage with carton outside
24. Net weight: 90kgs/198lbs
25. Gross weight: 120kgs/265lbs
26. Carton size: 145x77x86cm/1pc
27. Container: 28pcs/20', 60pcs/40', 70pcs/40'HQ
Special Features:
L 110cc engine is optional
L Front lamp and back lamp
Minimum Order Quantity: 5pcs
