Specifications
Prod Model: |
pit bike 120cc |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Type: |
120cc Air-Cooled Single-Cylinder Four-Stroke |
Bore And Stroke: |
52.4mm*55.5mm |
Compression Ratio: |
9.0:1 |
Starting: |
Kick |
Final Drive: |
#420 Chain;14t/37t |
Front Tire: |
60/100-14 |
Rear Tire: |
80/100-12 |
Net Weight: |
60kgs |
Fuel Capacity: |
3.5L |
Rake: |
25°(Anteversion Angle) |
Starting System: |
Kick Start and Electric Start |
Certification: |
CE |
Engine: |
4 Stroke |
Displacement: |
51-125CC |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Product Description

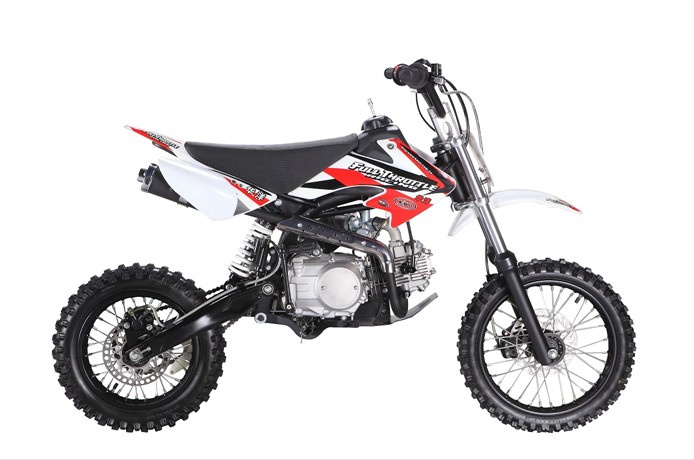

2014 hot selling pit bike 120cc
1. Stroke: 4 stroke
2. Ignition: CDI electronic ignition
3. Starting: Kick
4. Brake type: Dum brake
- ENGINE |
Engine Type |
120cc air-cooled single-cylinder four-stroke |
Bore And Stroke |
52.4mm*55.5mm |
Compression Ratio |
9.0:1 |
Ignition |
CDI electronic ignition |
Valve Train |
2 valves |
Starting |
Kick |
- DRIVE TRAIN |
Transmission |
Four-speed |
Final Drive |
#420 chain;15T/41T |
- CHASSIS / SUSPENSION / BRAKES |
Front Suspension |
Standard Forks; 100mm of travel |
Rear Suspension |
single-shock; 45mm of travel |
Front Brake |
190mm hydraulic disc with two piston caliper |
Rear Brake |
180mm hydraulic disc |
Front Tire |
60/100-14 |
Rear Tire |
80/100-12 |
- DIMENSIONS |
Rake |
25°(Anteversion Angle) |
Trail |
810mm |
Wheelbase |
1090mm |
Seat Height |
765mm |
Net Weight |
60kgs |
Fuel Capacity |
3.5L |
Ground Clearance |
300mm |
