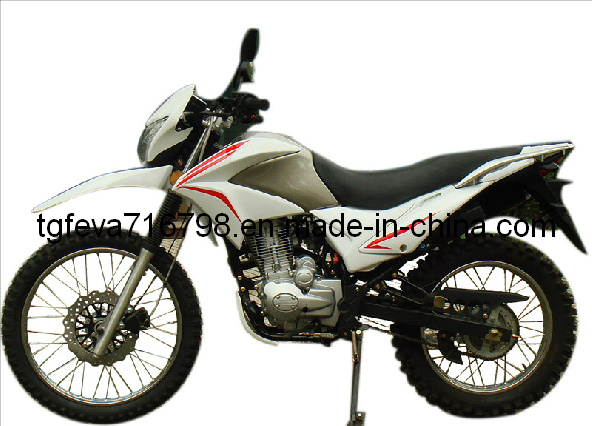

200CC Motorcycle (TGF-NXR13)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 20FT |
| Pay Type: | T/T |
| Prod Model: | TGF-NXR13 |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Engine Type: | 4-Stroke |
| Displacement: | 126-250CC |
Product Description
200CC motorcycle tiger2000Engine type: 200CC balanced shaft engine, 1-Cylinder, 4-Stroke, air-cooled
Brake: Fr. Disc & Rr. Drum brake
Starting method: Electric/Kick Starter
Spoke wheel
| Engine Type | WANGJIANG SUZUKI CG200 with balance | |||||||||||
| Start Method | Electric/Kick Start | |||||||||||
| Ignition Method | C.D.I | |||||||||||
| Bore x Stroke(mm) | 63.5×62.2 | |||||||||||
| Displacement(ml) | 196.9 | |||||||||||
| Compression Ratio | 9.0:1 | |||||||||||
| Max.Power | 10.5kw /7500r/min | |||||||||||
| Max.Torque | 13.0N.m/7500r/min | |||||||||||
| Lowest Fuel Consumption Ratio(g/kw.h) | ≤354 | |||||||||||
| Max. Speed(km/h) | ≥100 | |||||||||||
| Transmission | Constant Mesh,5-Gears | |||||||||||
| Brake Method(Fr./Rr.) | Disc/Drum | |||||||||||
| Rim Type(Fr./Rr.) | spoke wheel/spoke wheel | |||||||||||
| Tyre Size(Fr./Rr.) | Fr.:2.75-21 Rr.:110/10-18 | |||||||||||
| Vehicle Measurement(mm) | 2150×870×1440 | |||||||||||
| Seat Height(mm) | 860 | |||||||||||
| Wheel Base(mm) | 1360 | |||||||||||
| Volume of Fuel Tank(L) | 7 | |||||||||||
| Passenger Qty' | 2 | |||||||||||
| Dry Weight(kg) | 120 | |||||||||||
