Specifications
Prod Model: |
ZC-ATV-12B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Displacements(Cc): |
200cc/250cc |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
250CC |
Transmission System: |
Chain Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
50-75 km/h |
Certification: |
CE |
Product Description

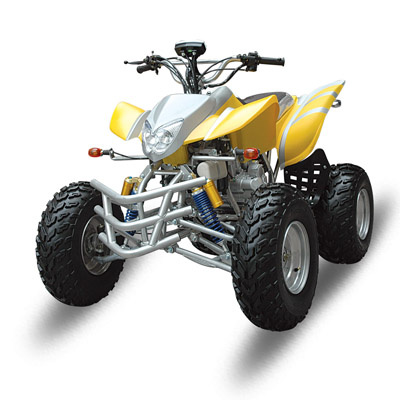

ZC-ATV-12B
Engine: 200/250CC, 4-stroke, water cooled
Max loading: 150kg
Ground clearance: 130mm
Front wheel: 21X7-10
Rear wheel: 20X10-10
Rated power: 10.3kw/7, 500rpm
Max torque: 15kw/6, 000r/min
Compression ratio: 9.2: 1
Starting system: Electric start
Oil tank: 4L
Brake: Drum/disk
Speed: ≥ 75km/h
Carton dimensions: 160X91X84cm
G. W. /N. W.: 170kgs/145kgs
Loading Qty: 14PCS/20FCL;
28PCS/40FCL;
42PCS/40HQ
Art No: | ZC-ATV-12B |
Engine type: | 200CC/250CC,4 stroke, water-cooled |
Engine brand: | XINYUAN(Chongqing) |
final drive: | Chain drive |
transmission type: | manual control, hand clutch (4 gears with forward back a file R-0-1-2-3-4) |
Displacement: | 200CC/250CC |
Fuel: | Gas |
starting: | Electric Start |
Ground clearance: | 130mm |
Max Speed: | ≥75km/h |
front wheel: | 21*7-10 |
rear wheel: | 20*10-10 |
compression rated: | 9.2:1 |
Brake: | front drum brake,rear hydraulic disc brake |
Battery : | 9AH/12V |
oil Tank : | 4L |
Net/Gross weight : | 165kgs/195kgs |
Carton dimensions: | 160*91*84cm |
container: | 14pcs/20FCL,28pcs/40FCL, 42pcs/40HQ |
MOQ: | 2pcs |
Port: | Ningbo |
cetification: | CE |
Color: | Blue,black,red,yellow..optional |
Packaging Details: | iron cage with carton outside |
Delivery Detail: | 20-40days |
