Home Wuyi Zhaochen Sport Appliance Co., Ltd. 200cc ATV Popular Star, Good Quality Zc-ATV-10b (200CC)

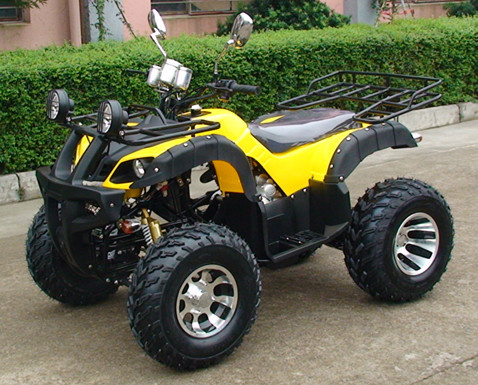

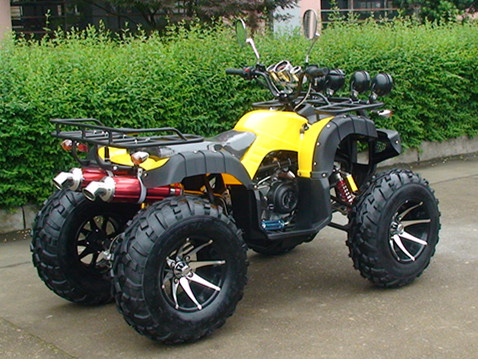

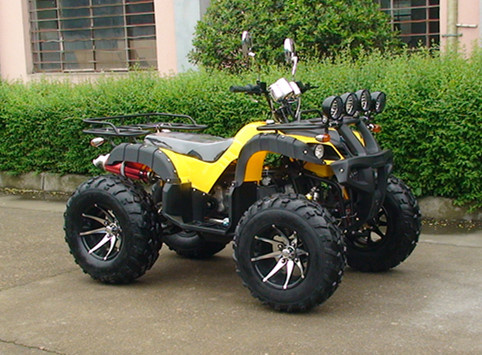

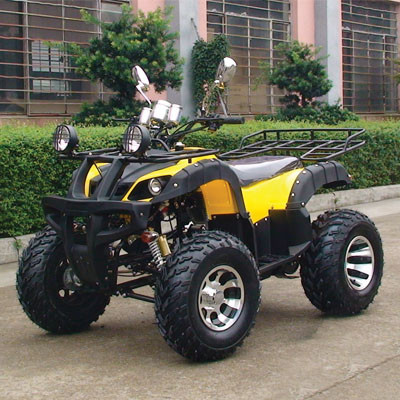

200cc ATV Popular Star, Good Quality Zc-ATV-10b (200CC)
| Price: | US $ 780-800/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | ZC-ATV-10B(200CC) |
|---|---|
| Markets: | North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Librication: | Pressure/Splash |
| Max Load Capacity: | 150kg |
| Final Drive: | Chain |
| Tire: | 10 Inches |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | 200CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | 50-75 km/h |
| Certification: | ISO9001 |
| Condition: | New |
| Brand: | Zc |
Product Description
ZC-ATV-10BVehicle specifications:
Wheel base(mm): 1100
Min. Ground clearance(mm): 110
Max loading weight(kg): 150
Max speed(km/h): 65
Brake method(FR/RR): Disk/disk
Seat height(mm): 1060
| Art No: | ZC-ATV-10B | ||
| Engine type: | 4 stroke, 1-cylinder,air-cooled | ||
| Engine brand: | XINYUAN (chongqing) | ||
| final drive: | Chain drive | ||
| transmission type: | manual control, hand clutch ,foot control,4-speed(R-0-1-2-3-4) | ||
| Displacement: | 200cc/ | ||
| Fuel: | Gas | ||
| starting: | Electric | ||
| librication: | pressure/Splash | ||
| MIin ground clearance: | 110mm | ||
| Max load capacity: | 150kgs | ||
| Max Speed: | 65km/h | ||
| Front/rear Tire | 10 inch | ||
| Brake: | front hydraulic disc brake,rear hydraulic disc brake | ||
| Battery : | 9AH/12V | ||
| Ignition: | C.D.I | ||
| Fuel Tank capacity: | 7.8L | ||
| Net/Gross weight : | 170kgs/200kgs | ||
| Carton size: | 154*90*78cm | ||
| container: | 20pcs/20GP,45pcs/40HQ | ||
| MOQ: | 5pcs | ||
| Port: | Ningbo | ||
| cetification: | CE | ||
| Color: | black,red,yellow..optional(camo) | ||
| Packaging Details: | iron cage with carton outside | ||
| Delivery Detail: | 20-40days | ||
