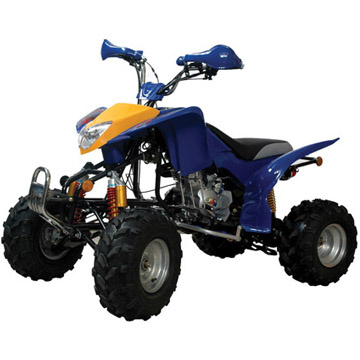

Home Zhejiang SBP Industry Co., Ltd. 200cc Air Cooled ATV (SBP-ATV200A)
Specifications
| Prod Model: | SBP-ATV200A |
|---|
Product Description
MODEL NO: SBP-ATV200A1. Engine type: 200CC, 4-stroke, Air cooled, single cylinder, with reverse gear
2. Transmission system: Chain
3. Bore x stroke (mm): 52.4 x 49.5
4. Compression ratio: 9.1: 1
5. Max. Power (kW/rpm): 4.7/8, 000
6. Max. Torque (Nm/rpm): 6.5/5, 500-6, 000
7. Starter system: Electric starter
8. Transmission: 4 speed, reverse
9. Dimensions (L x W x H): 1, 510 x 810 x 1, 010mm
10. Wheelbase (mm): 1, 120, rider capacity 1 person
11. Front tire: 8 x 9.0-8; Rear tire: 18 x 9.0-8
12. Front suspension: Double A x swing arm
13. Rear suspension: Monoshock swing arm
14. Front shock absorbers: Air chamber
15. Brakes (front/rear): Drum/disc
16. Conveyance: Qty: 30PCS/20"GP 66PCS/40"GP
