Home Wuyi Zhaochen Sport Appliance Co., Ltd. 200cc/250cc ATV Good Design (ZC-ATV-06A)

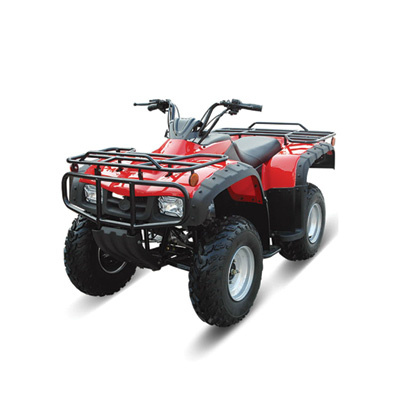

200cc/250cc ATV Good Design (ZC-ATV-06A)
| Price: | US $ 1200-1250/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | ZC-ATV-06A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacements(Cc): | 200cc/250cc |
| Color: | Optional |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | 250CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | 50-75 km/h |
| Certification: | CE |
Product Description
ZC-ATV-06AParameter of Engine
Engine model: 253FMM
Engine style: 250CC, 250CC water-cooled,
250CC automatic CVT water-cooled
Bore × Stroke: 53× 53mm
Ignition: C. D. I.
Lubrication: Pressure/ splash
Max power: 13/8000± 150kw/r/min
Max torque: 14.5/5500± 150N. M/r/min
Starting type: Electric
Max speed: 70km/h
Max noice: 80dB
Clutch: Manual clutch
Transmission: 5 speed, rotary
Parameter of motorcycle
Transmission: Pegged foot stall
Dimension: 188× 105× 110 (L× W× H cm)
Wheel base: 1180mm
Gross weight: 245kgs
Dry weight: 215kgs
Transmission type: Shaft drive & reverse
Tyre and rim: F. 23× 7-10 / R. 22× 10-10
Brake style: F. Drum / R. Disc
Absorber style: F. Independent hanging
Displacement: 233ml
Oiltank capacity: 8L)
Climbing ability: ≥ 30°
Max load: 200kgs)
Packing vol: 198× 108× 85 (L× W× H cm)
Container capacity: 40H: 36Unit
| Art No: | ZC-ATV-06A | ||
| Engine type: | 4 stroke, 1-cylinder,air-cooled | ||
| Engine brand: | Xinyuan(Chongqing) | ||
| final drive: | Chain drive | ||
| transmission type: | manual control, hand clutch ,foot control,4-speed(R-0-1-2-3-4) | ||
| Displacement: | 250CC | ||
| Fuel: | Gas | ||
| starting: | Electric | ||
| Max Speed: | 70km/h | ||
| Max Load: | 200kgs | ||
| Front/rear Tire | 23*7-10,22*10-10 | ||
| Brake: | front drum brake,rear hydraulic disc brake | ||
| Max Power: | 13kw/8000±150r/min | ||
| max torque: | 14.5N.m/5500±150r/min | ||
| Ignition: | C.D.I | ||
| lubrication: | pressure/ splash | ||
| Battery : | 9AH/12V | ||
| Fuel Tank capacity: | 10L | ||
| Net/Gross weight : | 215kgs/245kgs | ||
| product size: | 188*418*110cm | ||
| Carton size: | 198*108*85cm | ||
| container: | 12pcs/20GP,36pcs/40HQ | ||
| MOQ: | 5pcs | ||
| Port: | Ningbo | ||
| cetification: | CE | ||
| Color: | Blue,black,red,yellow..optional | ||
| Packaging Details: | iron cage with carton outside | ||
| Delivery Detail: | 20-40days | ||
