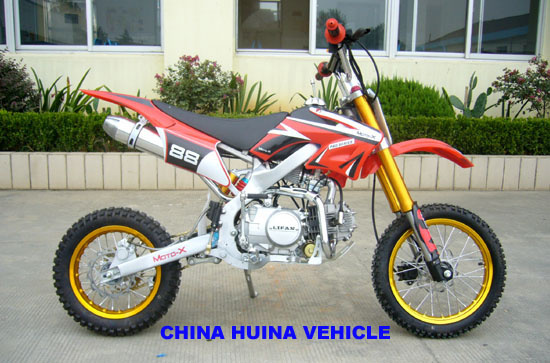

2007 Advanced 125cc Kawasaki Style Dirt Bike (HN-DB006)

Specifications

Prod Model:	HN-DB006

Product Description

2007 model 125cc kawasaki style

New body design full size dirt bike

Comes with 90 day limited ours warranty

20ft/60pcs; 40ft/120pcs; 40hq/145pcs

Key features engine: 125cc 4-stroke
Stg frame (reinforced steel material)
Japanese mikuni carburetors
Inverted shocks
Air shock suspension
Aluminum and iodized wheels
Aluminum gas cap
Chain drive system
Brakes: Front and rear disc
Tire: Dirt terrain tires
Load capacity: 300 lbs

Description:

Hn-db005 specifications

Certifications: Manufacturer holds current iso 9001 and ce, both have.

Motor: Lifan 1p52fmi-h

Type: 4-stroke, single-cylinder, 2-valve, ohc, air cooled, 125cc

Starter: Kick-start & electric start, bottom-laid starter motor

Bore & stroke: 52. 4 x 55. 5mm

Intake valve size: 27mm

Exhaust valve size: 23mm

Compression ratio: 9. 0: 1

Displacement: 119. 7cc

Power: 6. 5kw @ 7, 500 rpm

Torque: 8. 0nm / 5000 rpm

Carburettor: 26mm, double-float, japanese mikuni racing
Carburettor, racing paper air-filter

Idle speed: 1, 500 rpm

Spark plug: A7tc

Plug gap: 0. 6-0. 8mm

Ignition system: Cdi (capacitive discharge ignition)

Lubrication: Pressure / splash

Oil capacity: 0. 9l (15w-40, 4-stroke motorcycle oil)

Clutch: Manual clutch (wet multi-plate)

Gears: 4 speed, start-in-any-gear

Primary reduction: 3. 722 manual

Gear ratios: 3. 833/1. 706/1. 238/0. 958: 1

Gear pattern: 1-n-2-3-4, international shift

Stator: Permanent magnetic, ac

Voltage: 12 volts

Exhaust: Steel header pipe, 28mm diameter

Alloy muffler, 86mm diameter

Fuel: Billet alloy fuel cap

3l fuel capacity, unleaded fuel only

Frame: High strength, twin-spar reinforced steel frame and swingarm

Handlebars: High strength t4 forged alloy, 22mm tube diameter

Front suspension: Up-side down (usd) forks 44mm main tube
Diameter, preload adjustable, right-hand side
Rebound damping adjustable (red knob), left-hand
Side compression damping adjustable
The length is 720mm and the fork diameter is 44mm

Rear suspension: Nitrogen gas reservoir, preload and rebound
Damping adjustable,
280mm eyelet centre-to-centre length, 7 inches travel,

Brakes: Front and rear flat wave blade hydraulic disk brakes,
Twin-pist calipers, 3mm disk diameter

Seat height: 720mm

Handlebar height: 1040mm

Ground clearance: 240mm

Wheelbase: 1160mm

Wheels: Gold anodized alloy rims, alloy hubs, heavy-duty steel spokes

Tyres: 2. 75 x 14 inch front and 3. 00 x 12 inch rear

External gearing: #428 chain and sprockets, 16 teeth front sprocket,
41 teeth rear sprocket

Maximum speed: Approximately 100kmh

Size (assembled): 1620mm long x 750mm wide x 1000mm high

Dry weight: 60kg

Carton size: 145cm long x 45cm wide x 77cm high

Gross weight: 80kg (total including carton)
