Specifications
Prod Model: |
GC1102 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mini Ground Clearance: |
120(Mm) |
Wheel Base: |
1460(Mm) |
Battery: |
12V6.5ah |
Kart Transmission: |
Automatic with Reverse Insi |
Lubrication: |
Pressure and Splash |
Max Speed: |
45(Km/H) |
Seat Height: |
300mm |
Max Loading: |
100(Kg) |
Power Transmission: |
Chain Drive |
Engine Type: |
110cc 4 Stroke,1-Cylinder, |
Transmission: |
Chain |
Start-up: |
Manual Start-up |
Certification: |
CE |
Maximum Speed: |
<60 km/h |
Displacement: |
110cc |
Product Description
Go Karts

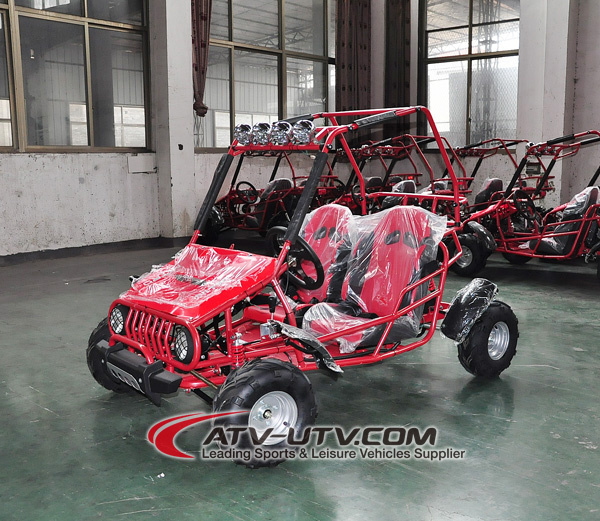

Double Seat Racing 4 Stroke Go-Kart for kids with air cooling 110CC Engine
GC1102-A
Key Specifications:
Wheel number: 4
Outer dimensions: 1980*1250*1370
Piston displacement: 110cc
Fuel tank: 4.7(L)
Engine type: 110cc 4 stroke, 1-cylinder, air-cooling
Starting system: Electric start
Power transmission: Chain drive
Ignition method: CDI
Brakes: Front/Rear hydraulic brake
Wheel size: Front/Rear: 16*8-7
Max loading: 100(kg)
Max speed: 45(Km/h)
Seat height: 300mm
Color: Yellow, black, red, blue
Max Power: 5.2/85000(kw/rpm)
Max Torque: 7.2/6000(Nm/rpm)
Lubrication: Pressure and Splash
Compression Ratio: 9.0: 1
Transmission: Automatic with reverse inside
Battery: 12V6.5Ah
Wheel Base: 1460(mm)
Mini Ground Clearance: 120(mm)
GC1102-B
Key Specifications:
Wheel number: 4
Outer dimensions: 1980*1250*1370
Piston displacement: 125cc
Fuel tank: 4.7(L)
Engine type: 110cc 4 stroke, 1-cylinder, air-cooling
Starting system: Electric start
Power transmission: Chain drive
Ignition method: CDI
Brakes: Front/Rear hydraulic brake
Wheel size: Front/Rear: 16*8-7
Max loading: 100(kg)
Max speed: 45(Km/h)
Seat height: 300mm
Color: Yellow, black, red, blue
Max Power: 5.2/85000(kw/rpm)
Max Torque: 7.2/6000(Nm/rpm)
Lubrication: Pressure and Splash
Compression Ratio: 9.0: 1
Transmission: Automatic with reverse inside
Battery: 12V6.5Ah
Wheel Base: 1460(mm)
Mini Ground Clearance: 120(mm)
Package: Carton Packing
Net weight: 157(kgs)
Gross weight: 177(kgs)
Carton size: 1805*1135*620mm
Container: 18pcs/20', 52pcs/40'HQ
