Home CHANGZHOU TRUE POWER MACHINERY CO., LTD 2-4 Person for Passenger Tricycle with 150cc (DTR-13)

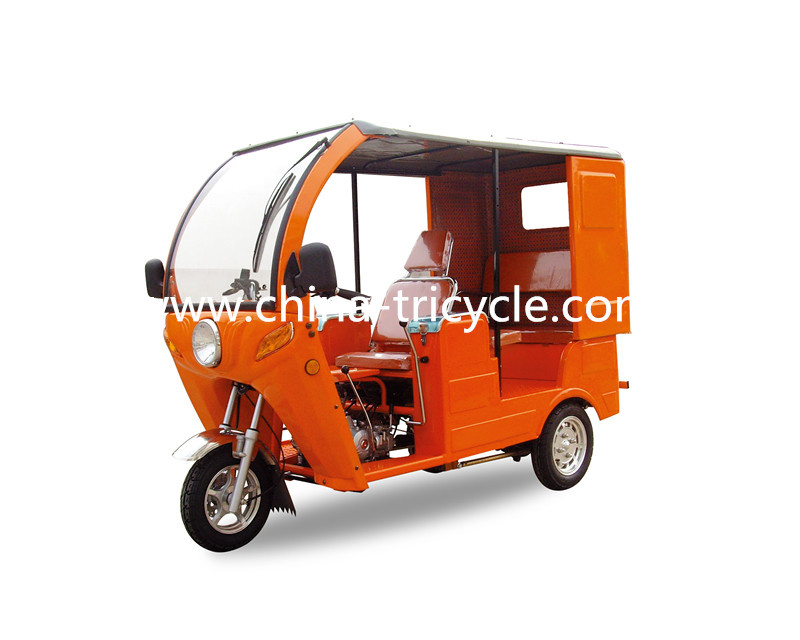

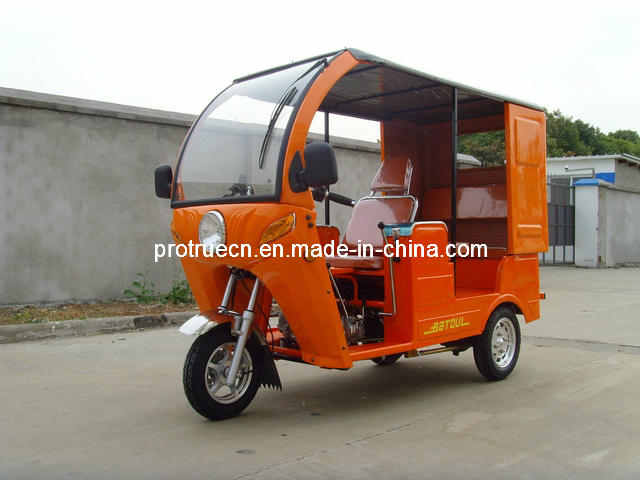

2-4 Person for Passenger Tricycle with 150cc (DTR-13)
| Price: | US $ 700-800/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 21/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | DTR-13 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Red,Yellow,Black etc |
| Break Type: | Dump |
| Design: | New Fashion |
| Transmission: | 4 Forward+1reverse |
| Load Capacity: | 100-200kg |
| Climbing Capability: | 12?? |
| Certification: | CE |
| Folded: | Unfolded |
| Accessories: | Rain Cover |
Product Description
2-4 Person for Passenger Tricycle with 150CC(DTR-13)Product Description
Engine Type one cylinder, 4stroke, air cooling Displacement 125cc
Starting method Electric / Hand Performance parameter Fuel Tank Capacity 8L
Brake front/rear Disc / Disc
Max speed 45km/h
Max loading 150-200kg
Oil Consumption 2.5 (L/100km)
Transmission mode shaft
Wheel(Front/Rear) 3.50-10/3.50-10 alloy rim
Wheel base 1350mm
Track 690mm
Front cover PP material
Rear cover and side FRP material
Loading capacity 2-4 persons
Weight Net weight 169kg
Total Size 1950*795*1040mm (L*W*H)
Loading QTY SKD 36pcs/40HQ steel frame and carton
Color Blue/Red/Orange
who choose our product?
1.Price:we have own factory,so we could offer lower price than trade company
2.Professinal:we had more than 10 years exprience in selling and manufacturing in tricycle industry,so we would and offer high quality product and service guarantee
3.Team:exprienced staffs would help you choose the correct product
and solve your concerned questions
4.Other:shortly delivery time,statidfied service
5.Supply:all high quality product not only big order but also sample
Order
FAQ:
processing to choose tricycle?
1.you should know what need the tricycle to transportation.
2.you should know the max weight you want the tricycle to transportation.
3.you could choose the displacement of the tricycle,such as 150CC,200CC,
250CC
4.you should attention the local weather,if very hot you should consider water
cooling engine
5.then you could consider the quantities of the tricycle and also the spare parts.
6.you may consider the delivery time and freight
7.you may consider the color of the tricycle and printing LOGO and design
| Engine | Type | one cylinder, 4-stroke, air cooling |
| Displacement | 125cc | |
| Starting method | Electric / Hand | |
| Performance parameter | Fuel Tank Capacity | 8L |
| Brake front/rear | Disc / Disc | |
| Max speed | 45km/h | |
| Max loading | 150-200kg | |
| Oil Consumption | 2.5 (L/100km) | |
| Transmission mode | shaft | |
| Wheel(Front/Rear) | 3.50-10/3.50-10 alloy rim | |
| Wheel base | 1350mm | |
| Track | 690mm | |
| Front cover | PP material | |
| Rear cover and side | FRP material | |
| Loading capacity | 2-4 persons | |
| Weight | Net weight | 169kg |
| Total Size | 1950*795*1040mm (L*W*H) | |
| Loading QTY | SKD 36pcs/40HQ steel frame and carton | |
| Color | Blue/Red/Orange | |
