Price: | Negotiable/Box |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1piece |
Pay Type: | L/C,T/T,Western Union |
Specifications
Prod Model: | PS150 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Loading Capacity: | 54 Units/40hq in SKD |
Muffler Material: | Aluminum |
Aluminum: | 118 Kg |
Battery: | 12V 7ah |
Max Torque: | 8.3/6000 N.M/R/Min |
Fuse: | 15A |
Lubricating Style: | Oil Pump |
Bore*Stroke: | 57.4*57.8 Mm |
Front Wheel: | 130/60-13 |
Transmission Ratio: | 6.89~22.39 |
Engine: | 4 Stroke |
Certification: | EPA |
Folded: | Unfolded |
Max Power: | 5.9kw/7000rpm |
Max Speed: | 85kw/H |
Displacement: | 150cc |
Maximum Loading Capacity: | 150kg |
Engine Type: | 157qmj Single/4stroke,Air-Cooling -Forced |
Fuel Tank Capacity: | 4.5L |
Product Description

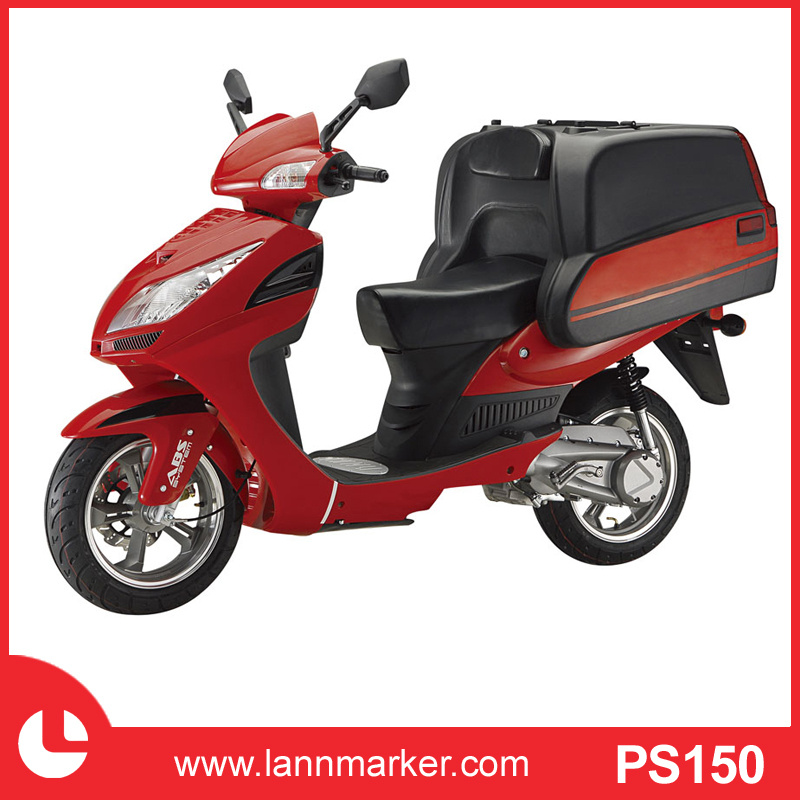

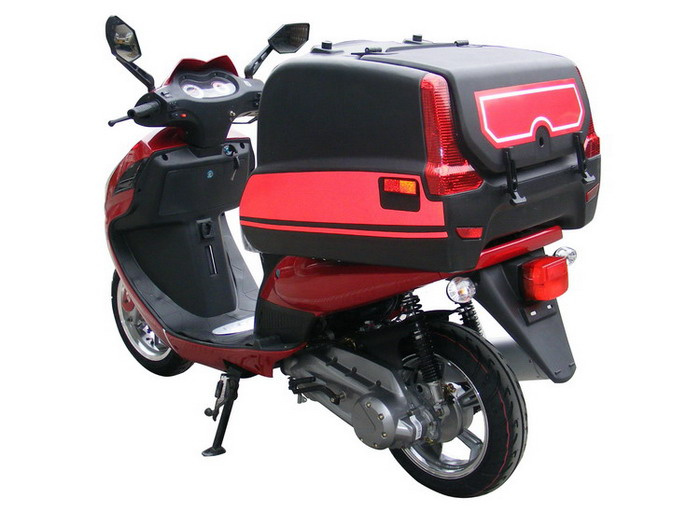

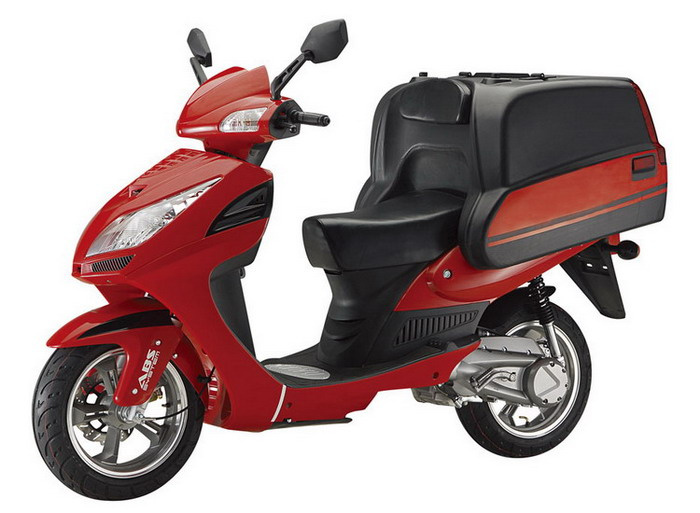

150cc Pizza ScooterENGINE | |
Engine Type | Single Cylinder, 4 Stroke |
Engine Displacement | 149.6cc |
Bore x Stroke | 57.4 X 57.8mm |
Compression Ratio | 9.2 : 1 |
Clutch Model | Centrifugal |
Fuel System | Shengwei Carburetor |
Cooling System | Air-cooled Forced |
Ignition | CDI |
Rated Power | 5.9Kw / 7000rpm |
Max. Torque | 8.3N.m / 6000rpm |
Fuel Capacity | 4.5L |
Max Speed | 85km/h |
Economic Fuel Consumption | 2.9L/100km |
Lubricating Style | Oil Pump |
Starting System | Electric & Kick Start |
Gearbox Type | Auto CVT |
Transmission Ratio | 6.89 ~ 22.39 |
Final Drive | Chain Drive |
Battery | Yuasa 12V 7Ah |
Fuse | 15 A |
TYRES & SUSPENSION & BRAKES | |
Front/Rear Tire | 130/60-13 |
Wheel Rim | Aluminum |
Brakes Front | Disc Brake |
Brakes Rear | Drum Brake |
DIMENSIONS & WEIGHT | |
Product Dimension(LxWxH) | 1,980 x 700 x 1,190mm |
Wheelbase | 1,350mm |
Ground Clearance | 150mm |
Dry Weight | 118kg |
Max Load | 150kg |
Container Loading | 54 units/40'HQ |
