Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 30/Piece |
Pay Type: | L/C,T/T,D/P |
Specifications
Prod Model: | FXATV-150 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Art No.: | Fxatv-150 |
Size: | 1660 * 1090 * 1060 Mm |
Engine: | 1 Cylinder,4 Stroke Auto, Gy 6 Engine |
Color: | Many Colors for Your Choice |
ATV: | Air-Cooled ATV |
Order: | Min Order |
Package: | Strong Packing |
Transmission System: | Chain Drive |
Certification: | ISO9001 |
Engine Type: | 4 Stroke |
Fuel: | Electric |
Structure: | Without Door |
Maximum Speed: | 50-75 km/h |
Transmission Type: | Electric |
Displacement: | 150 Cc |
Brake Type: | Hydraulic Brake/ Hydraulic Brake |
Product Description

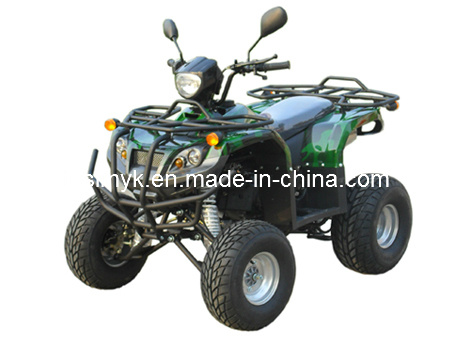

150cc motor atc car vehicle Art No. : ? FXATV-150FTW 1.Engine type:1 Cylinder,4 stroke AUTO, GY 6 engine 2.Displacement:150 cc 3.Max power:6.0 kw/ 7500 rpm 4.Max torque:8.3 Nm/6000 rpm 5.Cooling:air cooled 6.Lubrication:pressure and splash 7.Ignition:CDI 8.Starting:Electic start 9.Final drive:chain drive 10.Transmission:C.V.T automatic With inside reverse, front suspension:double Aarm 11.Rear suspension:swing arm 12.Front brake:dual sealed drums/right hand operation 13.Rear brake:hydraulic disc / left hand operation parking:front/rear wheel 14.Front tire:AT21*7-8 15.Rear tire:AT 20*9.5-8 16.L*W*H:1660 * 1090 * 1060 mm 17.Seat height:810 mm 18.Wheel base:1090 mm 19.Turn radius:3000 mm 20.Ground clearance:120 mm 21.Dry weight:150 kgs 22.Max speed:64 km/ h 23.Tank capacity:5.0 L 24.Reserve amount:0.9 L 25.Loading quantity:18 pcs/20FT,63pcs/40HQ 26.Packing Size in CBU:1490*840*800 mm
