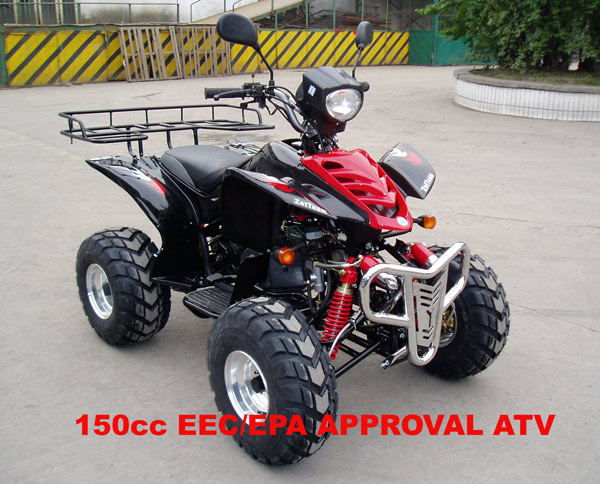

150CC EEC/EPA ATV (HN-ATV010)

Specifications

Prod Model:	HN-ATV010

Product Description

1. Single cylinder four strokes, air cooled
2. Displacement (ml): 150
3. Cylinder dia. X working stroke(mm * mm): 52.4 x 49.5
4. Ignition method: Cdi
5. Max. Power(kw/r/min): 5.2/7500
6. Max. Toque(n. M/r/min): 7.2/8000
7. Starting model: Electric start
8. Dimension ((mm): 1580x880x1100
9. Wheel base(mm): 1040
10. Dry weight(kg): 116
11. Tyre, rear: 18 x 9.5-8
12. Tyre, front: 19 x 7-8
13. Fr. Brake: Disk
14. Rr. Brake: Disk
15. Transmisstion model: Chain
16. Reverse gear: With
17. Front suspension: Double 'a' swing arm
18. Qty of 20' /40hq container: 18/44/66 units
19. Packing size(mm): 1470 x850 x880
20. Horn: With
21. Reflector: With
22. Light: With
23. Meter: With

Optional:
Aluminium muffler.
Aluminium wheel hub
Remote control
