Home Orientex Engineering Co., Ltd. 150cc Automatic Buggy/Go Kart with EEC&Coc

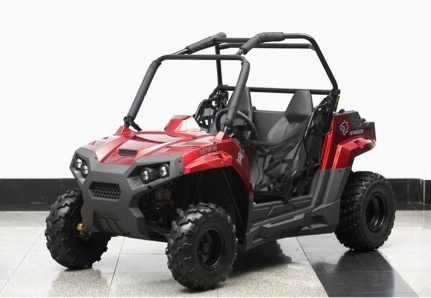

150cc Automatic Buggy/Go Kart with EEC&Coc
| Price: | US $ 1695/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Prod Model: | KQkart001A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission: | Chain |
| Start-up: | Electric |
| Certification: | EEC |
| Displacement: | 150CC |
| Maximum Speed: | <60 km/h |
Product Description
Specifications2011 mass produce item.
150cc EEC, EPA go-kart new for 12-16 years old.
Avilable magical color make yours different to others
| ENGINE | |
| Certification | EPA &EEC approved |
| Engine type | 4-stroke,Single-Cylinder, Air/Oil-cooled |
| Displacement | 149.6CC |
| Horse Power | 6.0kw(7500r/min) 8.2HP |
| Valve Configuration | OHV |
| Compression ratio | 9.0:1 |
| FUEL SYSTEM | |
| Fuel Delivery System | Fuel Pump Carburetor |
| Choke System | Automatic |
| Fuel capacity | 9.5L (2.1 Gallon) |
| DRIVETRAIN | |
| Driveline Type | 2 x 4 |
| Final Drive | Chain-drive |
| Transmission | Constantly Variable Transmission |
| Gear Selection | Forward & Reverse Single Speed |
| ELECTRICAL SYSTEM | |
| Forward Lights | Headlights-High & Low Beam |
| Rear Lights | Brake Lights & Left/Right Signal lights |
| Starting system | Electric start |
| Ignition system | C.D.I. |
| SUSPENSION / BRAKES | |
| Suspension Front | Single A-arm (Double A-arm optional) |
| Suspension Rear | Dual Shock Swing arm |
| Brakes Front | Front Dual Hydraulic Disk |
| Brakes Rear | Rear Single Axle Hydraulic Disk |
| TIRES | |
| Front Tread | 1020mm ( 40 in) |
| Rear Tread | 965mm ( 38 in) |
| Front & Rear tire size | 19x7-8 / 20x10-9 |
| MISC. | |
| Loading information | 8 units/20″; 18units/40″; 27 units/40HQ |
| Manufacturers Defect Warranty | 6 Months |
| Top speed | 55km/h (34.2 M.P.H.) |
| Dry weight | 245kg ( 540 lbs.) |
| Wheelbase | 1650mm (65in) |
| Vehicle dimension(L×W×H) | 2250mm x 1220mm x 1397mm ( 88.6 in x 48 in x 55 in) |
| Ground clearance | 152mm (6in) |
| Safety | Driver & Passenger Seat belts/ Driver and Passenger safety net restraints. |
