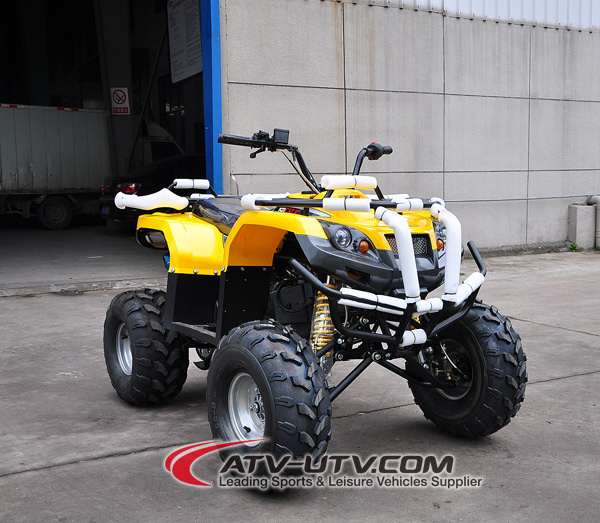

150cc ATV with Front and Rear Hydraulic Disc (AT1501)
| Price: | US $ 815.76-904.76/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Paypal,Money Gram,Western Union |
Specifications
| Prod Model: | AT1501 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Torque: | 8.5/7500(Kw/Rpm) |
| Max Power: | 8.3/6000(Nm/Rpm) |
| Ignition Type: | Cdi |
| Transmission: | Automatic with Reverse |
| Brake (Front/Rear): | Hydraulic Disc/ Hydraulic Disc |
| Starting System: | Electric Start |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 150CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description
ATVNew 150cc ATV with front and rear Hydraulic disc
AT1501
Key Specifications:
Engine Type: 4-stroke, 1-cylinder, air-cooled
Product size: 1660*1050*1110
Displacement: 150cc
Max Power: 8.5/7500(kw/rpm)
Max Torque: 8.3/6000(Nm/rpm)
Starting: Electric
Ignition: C. D. I
Lubrication: Pressure and Splash
Compression Ratio: 10: 1
Transmission: Automatic with reverse
Final Drive: 2WD, chain drive system
Front/Rear Brake: Front: Hydraulic disc; Rear: Hydraulic disc
Max Speed: 65(Km/h)
Fuel Capacity: 4(L)
Capacity Weight: 150(kg)
Battery: 12V9Ah
Wheel Base: 1105(mm)
Front/Rear Tire: 21*7-8; 21*10-8
Seat Height: 860kg
Mini Ground Clearance: 125(mm)
Color: Black, red, blue, yellow, camo(+$18.85), painting red(+$15)
Package: Iron cage with carton outside
Net Weight: 150(kgs)
Gross Weight: 184(kgs)
Carton Size: 1480*850*850
Container capacity: 20pcs/20GP; 63pcs/40'HQ
