Specifications
Prod Model: |
ZC-ATV-15 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
150CC |
Transmission System: |
Chain Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
50-75 km/h |
Certification: |
CE |
Product Description

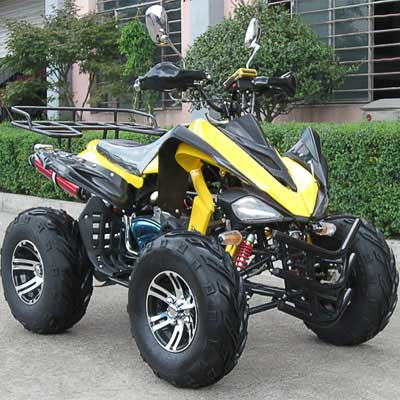

ZC-ATV-15
Engine: 150CC/200CC/250CC, single-cylinder, four-stroke,
Promise speed (or third gear with the forward back a file R-0-1-2-3-4)
Ground clearance: 150mm
Maximum load: 150kg
Front wheel size: 19X7-8 Rear Size: 18X9.5-8
Front and rear wheelbase: 1100mm
Two front-wheel distance: 860mm
Two rear-wheel distance: 820mm
Seat height: 860mm
Startup methods: Electric start
Fuel tank capacity: 4.5L
Battery: 12V 7Ah
Transmission mode: Chain drive
Maximum speed: 60km / h
G. W. /N. W.: 160kgs/140kgs
Packing size: 171X96X80cm
Qty: , 42PCS/40HQ
Art No: | ZC-ATV-15A |
Engine type: | 4 stroke,1-cyclinder,air-cooled |
Engine brand: | Wangye GY6 |
final drive: | Chain drive |
transmission type: | automatic 150cc CVT |
Displacement: | 150CC |
Fuel: | Gas |
starting: | Electric |
Ground clearance: | 150mm |
Max Speed: | ≥60km/h |
front wheel: | 21*7-10 |
rear wheel: | 20*10-10 |
Brake: | front drum brake,rear hydraulic disc brake |
Battery : | 6.5AH/12V |
oil Tank : | 4.5L |
Net/Gross weight : | 160kgs/190kgs |
Carton dimensions: | 170*97*85cm |
container: | 12pcs/20FCL, 42pcs/40HQ |
MOQ: | 2pcs |
Port: | Ningbo |
cetification: | CE |
Color: | Blue,black,red,yellow..optional |
Packaging Details: | iron cage with carton outside |
Delivery Detail: | 20-40days |
Payment Terms: | T/T(30% in advance ,70% After B/L copy) |
FOB NINGBO PRICE: | 150cc $750 based on 40HQ |
