Home Wuyi Zhaochen Sport Appliance Co., Ltd. 150cc ATV ATV (ZC-ATV-10B)

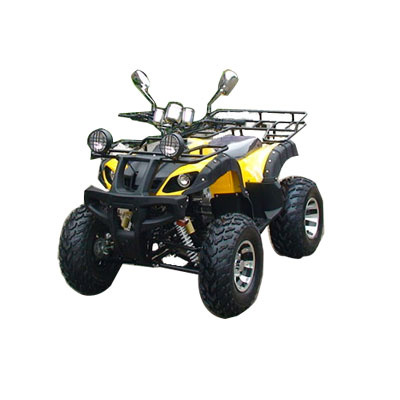

150cc ATV ATV (ZC-ATV-10B)
| Price: | US $ 750-780/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | ZC-ATV-10B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacements(Cc): | 150cc |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | 150CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | 50-75 km/h |
| Certification: | CE |
Product Description
ZC-ATV-10BVehicle specifications:
Wheel base(mm): 1100
Min. Ground clearance(mm): 110
Dry weight(kg): 140
Max loading weight(kg): 150
Max speed(km/h): 65
Brake method(FR/RR): Disk/disk
Tire size(FR/RR): 19X7-8/18X9.5-8
Seat height(mm): 1060
Suspension/Front: Air chamber
Suspension/Rear: Air chamber
Fuel capacity: 7.8L
Outer packing: Cartons with steel frame
Carton size: 154X90X85cm
Engine specifications:
Engine type: 150/200/250CC, single cylinder, air-cooled, 4-stroke
Borexstroke(mm): 52.4X49.5
Compressing ratio: 9.0: 1
Max power and speed: 4.8kw/7000± 5%
Max torque(N. M/rpm): 5.7N. M/6000-6500r/min± 5%
Starting method: Electric
Lubrication way: Press and splash
Ignition: CDI
Transmission: 4-speed, manual clutch
Quantity: 14PCS/20', 45PCS/40HQ
| Art No: | ZC-ATV-10B | ||
| Engine type: | 4 stroke, 1-cylinder,air-cooled | ||
| Engine brand: | Wangye GY6 | ||
| final drive: | Chain drive | ||
| transmission type: | automatic, 150CCCVT | ||
| Displacement: | 150CC | ||
| Fuel: | Gas | ||
| starting: | Electric | ||
| librication: | pressure/Splash | ||
| MIin ground clearance: | 110mm | ||
| Max load capacity: | 150kgs | ||
| Max Speed: | 65km/h | ||
| Front/rear Tire | 10 inch | ||
| Brake: | front hydraulic disc brake,rear hydraulic disc brake | ||
| Battery : | 6.5AH/12V | ||
| Ignition: | C.D.I | ||
| Fuel Tank capacity: | 7.8L | ||
| Net/Gross weight : | 165kgs/195kgs | ||
| Carton size: | 170*105*85cm | ||
| container: | 12pcs/20GP,39pcs/40HQ | ||
| MOQ: | 5pcs | ||
| Port: | Ningbo | ||
| cetification: | CE | ||
| Color: | black,red,yellow..optional(camo) | ||
| Packaging Details: | iron cage with carton outside | ||
| Delivery Detail: | 20-40days | ||
| Payment Terms: | T/T(30% in advance ,70% After B/L copy) | ||
| Addition: | speed meter,mirror, 10 inch Aluminum wheels | ||
