Specifications
Prod Model: |
AT1507 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Torque: |
10nm/5500rpm |
Max Power: |
9.3kw/7500rpm |
Ignition Type: |
Cdi |
Transmission: |
Automatic |
Brake (Front/Rear): |
Drum/Disc |
Starting System: |
Electric Start |
Battery Spec: |
12V,9ah |
Wheel Base: |
1150mm |
Ground Clearance: |
130mm |
Load Capacity: |
150kg |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
200CC |
Structure: |
Without Door |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |

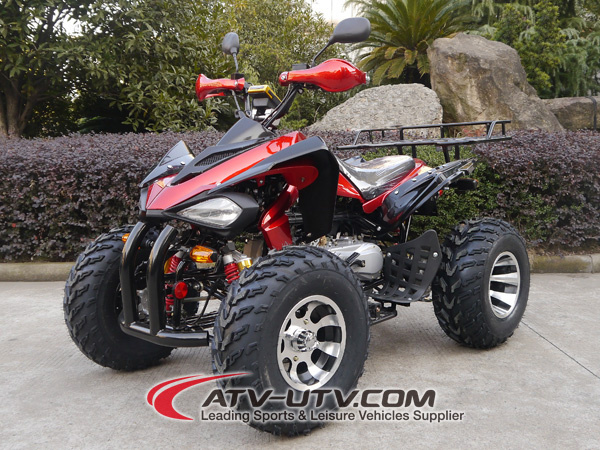

Product Description
AT1507-A
Key Specifications:
Engine type: 150cc, 4 storke
Max torque: 10Nm/5500rpm
Max power: 9.3kw/7500rpm
Ignition type: CDI
Transmission: Automatic
Brake (Front/Rear): Drum/Disc
Starting system: Electric start
Battery spec: 12V, 9AH
Front suspension details: Double A x swing arm
Rear suspension details: Mono shock swing arm
Front tire spec: 19X7-8 rear tires spec: 18X9.5-8
Vehicle dimensions: 158x120x110cm
Wheel base: 1150mm
Seat height from ground: 84cm
Ground clearance: 130mm
Load capacity: 150kg
Fuel tank capacity: 4.5L
AT1507-B
Key Specifications:
Engine type: 200cc, 4 storke
Max torque: 10Nm/5500rpm
Max power: 9.3kw/7500rpm
Ignition type: CDI
Transmission: Automatic
Brake (Front/Rear): Drum/Disc
Starting system: Electric start
Battery spec: 12V, 9AH
Front suspension details: Double A x swing arm
Rear suspension details: Mono shock swing arm
Front tire spec: 19X7-8 rear tires spec: 18X9.5-8
Vehicle dimensions: 158x120x110cm
Wheel base: 1150mm
Seat height from ground: 84cm
Ground clearance: 130mm
Load capacity: 150kg
Fuel tank capacity: 4.5L
Package:
Net weight: 178kg
Gross weight in carton: 193kg
Carton size: 149X84X75CM
Container: 20pcs/20ft, 30pcs/40ft, 36pcs/40HQ
