Home Panan Jiadesheng Industry And Trade Co., Ltd. 150cc, 200cc 250cc 4 Stroke ATV 4 Wheeler Buggy Hummer ATV Wv-ATV27

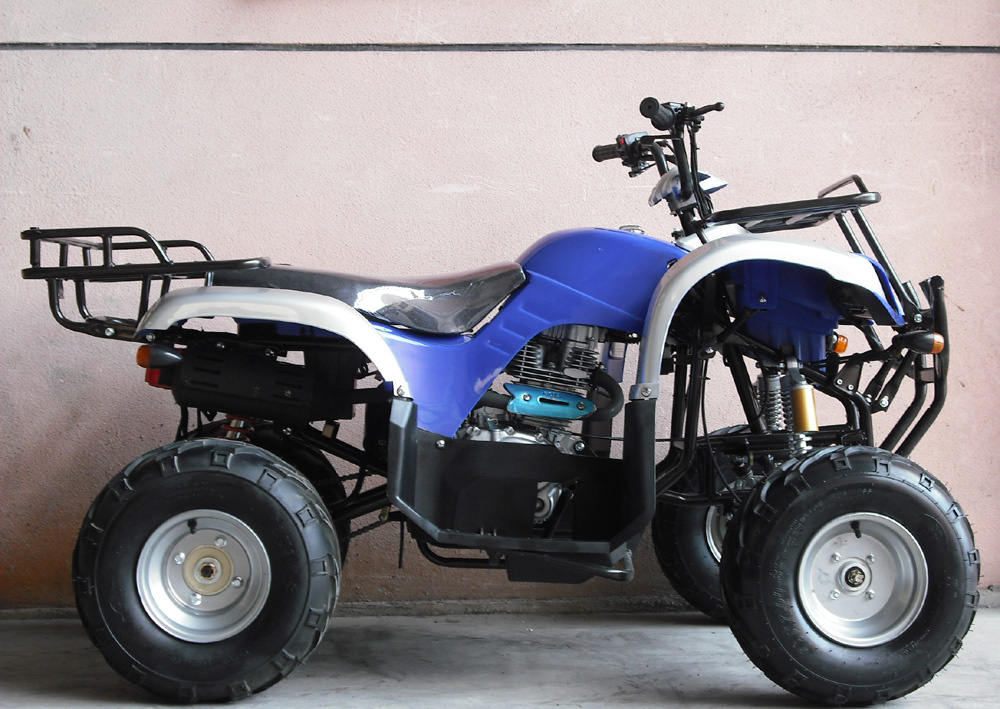

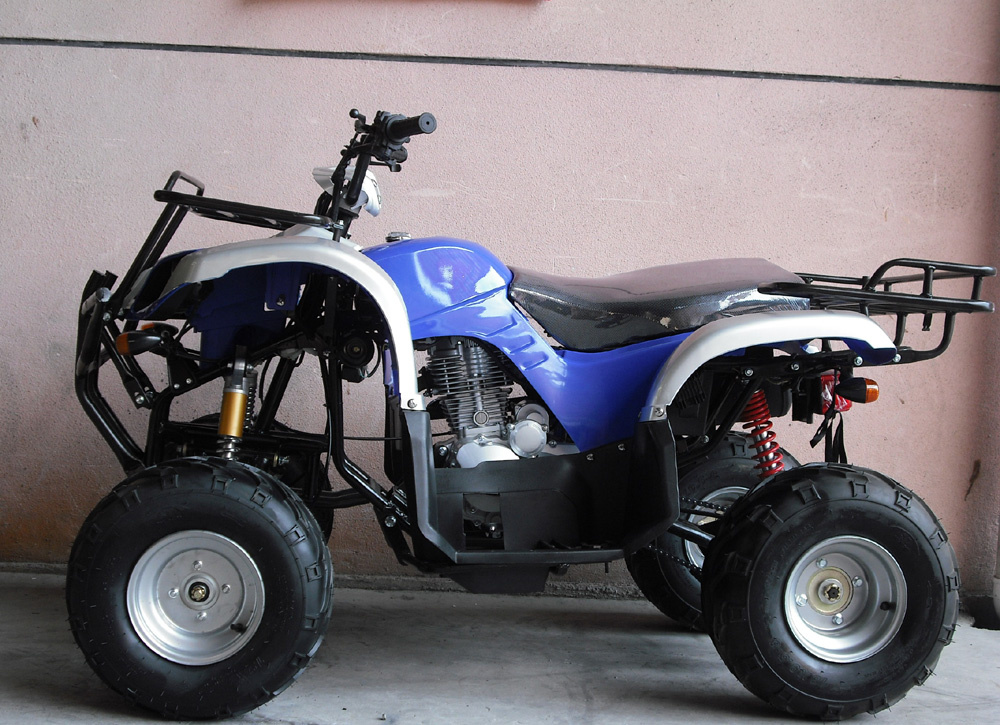

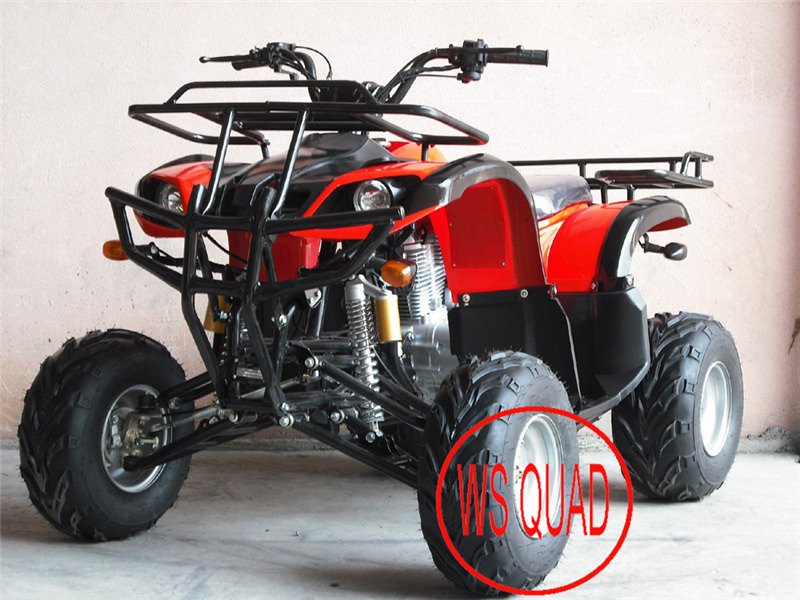

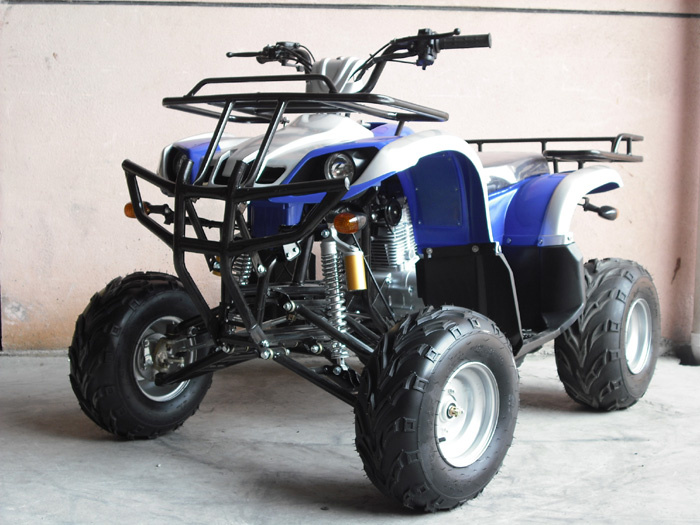

150cc, 200cc 250cc 4 Stroke ATV 4 Wheeler Buggy Hummer ATV Wv-ATV27

150cc, 200cc 250cc 4 Stroke ATV 4 Wheeler Buggy Hummer ATV Wv-ATV27
Price: US $ 680-730/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union

Specifications

Prod Model: wv-atv-027
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
10inch Wheel: Can with
Can With: Road Tyre in 10inch
Speedmeter: Can with
Transmission System: Chain Drive
Transmission Type: Automatic
Certification: ISO9001
Engine Type: 4 Stroke
Fuel: Gas / Diesel
Structure: Without Door
Maximum Speed: 50-75 km/h
Displacement: 150cc-250cc
Brake Type: Drum and Disc Brake

Product Description

Model: WV-ATV-027
Engine :
l   250CC, 4-stroke, single cylinder, air-cooling
l   Max. power: 11.0kw/7500rpm
l   Starting system: electric
l   Transmission:5 speeds forward / 1 reverse      Clutch: manual
Chassis:
l   Brakes (Front/rear): drum/Hydraulic disc
l   Absorber (front/rear):ballonet - absorber
l   Tires(Front/Rear): 19x7-8 /18x9.50-8
l   Drive train: Chain      Fuel capacity: 8L
Dimensions:
l   Wheel base:1075mm   Seat height:800mm
l   Ground clearance: 160mm
l   Products size: 1450×8500×930mm
l   Max speed: 85km/h
l   Max load capacity: 200Kgs
Packing:
l   G.W:159kgs  N.W:148KGS
l   Package measure: 1500x820x800cm
Conveyance:
l   Qty/20Fcl: 20pcs Qty/40Fcl: 30pcs   Qty/40HQ: 66pcs
ATV-027 Engine: 1. GY6/150, 4-stroke, single cylinder, air-cooling
2. Max. power: 11.0kw/7500rpm 3. Starting system: electric
4. Transmission:4 speeds forward / 1 reverse      Clutch: manual
Chassis: 1. Brakes (Front/Rear):drum/Hydraulic disc
2. Absorber (front/rear):ballonet - absorber
3. Tires(Front/Rear): 19x7-8 /18x9.50-8
4. Drive train: Chain      Fuel capacity: 8L
Dimensions: 1. Wheel base:1075mm   Seat height:800mm
2. Ground clearance:160mm 3. N.W: 148kg    G.W:159kg
4. Products sizes:1450×8500×930mm
5. Carton sizes:1500 x 820 x 800mm
Other: Max speed: 85km/h     Max load capacity: 200Kgs
container: Qty/20Fcl:20pcs Qty/40Fcl:30pcs Qty/40HQ:63pcs
