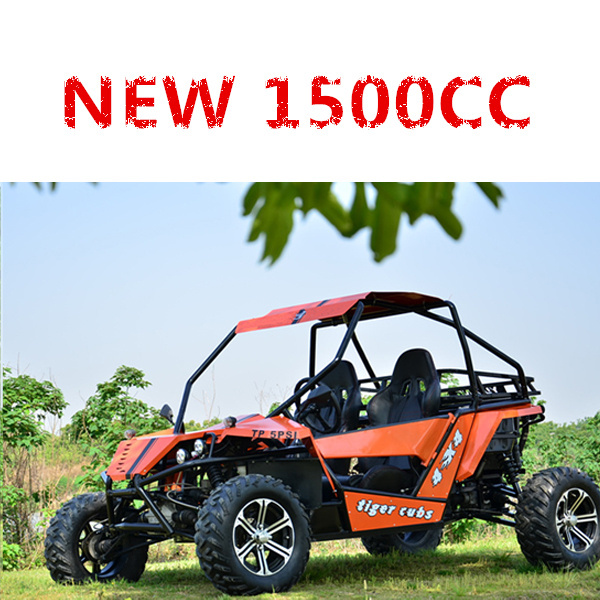

1500cc 4X4 Shaft Buggy (DMB1500-01)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | DMB1500-01 |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Age: | Adults |
| Transmission: | Shaft |
| Start-up: | Electric |
| Certification: | CE |
| Maximum Speed: | >90 km/h |
| Kind: | Vari-Speed |
| Condition: | New |
| Usage: | Sport |
| Color: | Black / Red / Blue |
| Displacement: | 1500cc |
Product Description
DMB1500-01 1500cc 4x4 shaft drive .Specification:
| Engine type | Chery l4, sohc |
| Displacement | 1.5l |
| Valve configurations | 16 valves |
| Compression ratio | 10.5:1 |
| Max.Torque | 140n.M/3000 rpm |
| Max.Power | 80kw/6000 rpm |
| Borexstroke (mm) | 77.4×79.52 |
| Spark plug | Fr7dtc |
| Gear oil | 3.6l summer sae 10 w - 40 (sl level and above) Winter sae 5 w - 40 (sl level and above) |
| Transmission type | 1/2/3/4/5/r |
| Product dimensions | L3150 mm,w1720mm,h1700mm |
| Wheel span | Front 1460 mm rear 1420 mm |
| Wheel base | 2030mm |
| Front tire | 27*8-14 |
| Rear tire | 27*11-14 |
| Ground clearance | 320mm |
| Minimum turning radius(mm) | 4800mm |
| Max.Speed | 120km/h |
| Steering system | Pinion and rack (optionally eps) |
| Front suspension | Double arm independent suspension |
| Rear suspension | Double arm independent suspension |
| Brake system | Dual hydraulic disc |
| Fuel capacity | 32l |
| Curb weight | 580kg |
| Cross-country power | Approach angle 900 removed angle900 passing angle 330 |
| Quantity: | 40hq 12pcs |
| Color: | Red orange white blue green (custom made) |
